HARWIN

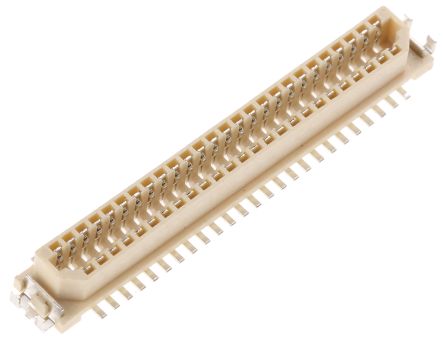

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 身体上的取向 | Straight |
| 触点材料 | Phosphor Bronze |
| 额定电流 | 0.5A |
| 安装类型 | Surface Mount |
| 触点数 | 51 |
| 行数 | 2 |
| 间距 | 1mm |
| 端接方式 | Solder |
| 类型 | Board to Board |
| 额定电压 | 100 V ac |
| 工厂包装数量 | 18 |
| 安装方式 | Vertical |
| 产品种类 | Headers & Wire Housings |
| 外壳材料 | Polyamide (PA) |
| 系列 | M40-620 |
| 端接类型 | SMD |
| 联系人性别 | Socket (Female) |
| 位置/触点数 | 51 |
| 产品类型 | Receptacles / Sockets - PCB |
| 触点电镀 | Tin |
| 闭锁类型 | Unlatched |
| 行间距 | 1 mm |
| RoHS | RoHS Compliant |
| 节距 | :1mm |
| No. of Contacts | :51 |
| 性别 | :Receptacle |
| No. of Rows | :2 |
| 接触端子 | :Surface Mount Vertical |
| SVHC | :No SVHC (20-Jun-2013) |
| 接触电阻 | :50mohm |
| External Length / Height | :4.3mm |
| 外宽 | :28.1mm |
| 绝缘电阻 | :500Mohm |
| 绝缘材料 | :Nylon (Polyamide) |
| 引线间距 | :1mm |
| Operating Temperature Max | :100°C |
| Operating Temperature Min | :-55��C |
| Voltage Rating V AC | :100V |
| Weight (kg) | 0.024 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
