HARWIN

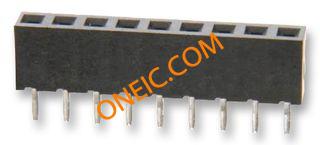

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 身体上的取向 | Straight |
| 触点材料 | Phosphor Bronze |
| 额定电流 | 1A |
| 安装类型 | Through Hole |
| 触点数 | 4 |
| 行数 | 1 |
| 间距 | 2mm |
| 端接方式 | Solder |
| 类型 | Socket Strip |
| 工厂包装数量 | 152 |
| 安装方式 | Vertical |
| 产品种类 | Headers & Wire Housings |
| 外壳材料 | Nylon |
| 额定电压 | 500 V |
| 系列 | M22-713 |
| 端接类型 | Through Hole |
| 联系人性别 | Socket (Female) |
| 位置/触点数 | 4 |
| 触点电镀 | Gold |
| 产品类型 | Receptacles / Sockets - PCB |
| RoHS | RoHS Compliant |
| 节距 | :2mm |
| No. of Rows | :1 |
| No. of Contacts | :4 |
| 性别 | :Receptacle |
| 接触端子 | :Through Hole Vertical |
| SVHC | :No SVHC (20-Jun-2013) |
| 颜色 | :Black |
| 接触电阻 | :20mohm |
| De-mating Force | :0.2N |
| External Length / Height | :4.4mm |
| 外宽 | :2.4mm |
| 可燃性等级 | :UL94V-0 |
| 绝缘电阻 | :5000Mohm |
| 引线间距 | :2mm |
| 材质 | :Nylon 6T |
| 交配力 | :2N |
| No. of Mating Cycles | :50 |
| No. of Poles | :4 |
| Operating Temperature Max | :+105°C |
| Operating Temperature Min | :-40°C |
| Proof Voltage | :500V |
| Weight (kg) | 0.00013 |
| Tariff No. | 85366990 |
