HARWIN

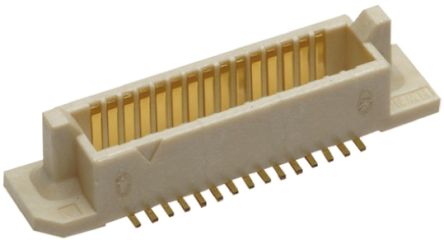

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 身体上的取向 | Straight |
| 触点材料 | Phosphor Bronze |
| 额定电流 | 0.5A |
| 安装类型 | Surface Mount |
| 触点数 | 30 |
| 行数 | 2 |
| 间距 | 0.8mm |
| 系列 | M60-6 |
| 端接方式 | Solder |
| 类型 | Board to Board |
| 额定电压 | 100 V ac |
| 节距 | :0.8mm |
| No. of Contacts | :30 |
| 性别 | :Socket |
| 触点电镀 | :Gold |
| No. of Rows | :2 |
| 接触端子 | :Surface Mount Vertical |
| SVHC | :No SVHC (20-Jun-2013) |
| 外宽 | :16.8mm |
| 可燃性等级 | :UL94V-0 |
| 绝缘电阻 | :100Mohm |
| 绝缘材料 | :Polyester |
| 引线间距 | :0.8mm |
| No. of Mating Cycles | :30 |
| Operating Temperature Max | :100°C |
| Operating Temperature Min | :-55°C |
| Voltage Rating V AC | :100V |
| Weight (kg) | 0.032 |
| Tariff No. | 85369010 |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
