HARWIN

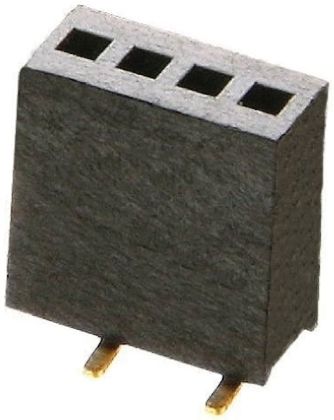

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 身体上的取向 | Straight |
| 触点材料 | Copper Alloy |
| 额定电流 | 1A |
| 安装类型 | Surface Mount |
| 触点数 | 25 |
| 行数 | 1 |
| 间距 | 1.27mm |
| 系列 | M52 |
| 端接方式 | Solder |
| 额定电压 | 150 V ac |
| 工厂包装数量 | 18 |
| 产品种类 | Headers & Wire Housings |
| 端接类型 | SMD |
| 联系人性别 | Socket (Female) |
| 位置/触点数 | 25 |
| 触点电镀 | Gold |
| 产品类型 | Receptacles / Sockets - PCB |
| RoHS | RoHS Compliant |
| 节距 | :1.27mm |
| No. of Rows | :1 |
| No. of Contacts | :25 |
| 性别 | :Receptacle |
| 接触端子 | :Surface Mount Vertical |
| SVHC | :No SVHC (20-Jun-2013) |
| 接触电阻 | :40mohm |
| De-mating Force | :0.3N |
| External Length / Height | :4.6mm |
| 可燃性等级 | :UL94V-0 |
| 房屋类型 | :High Temp Thermoplastic |
| 绝缘电阻 | :1000Mohm |
| 引线间距 | :1.27mm |
| 交配力 | :2N |
| No. of Mating Cycles | :50 |
| No. of Poles | :25 |
| Operating Temperature Max | :+105°C |
| Operating Temperature Min | :-40°C |
| Proof Voltage | :500V |
| Row Pitch | :2.54mm |
| Voltage Rating V AC | :150V |
| Weight (kg) | 0.00082 |
| Tariff No. | 85366990 |
