Deltron

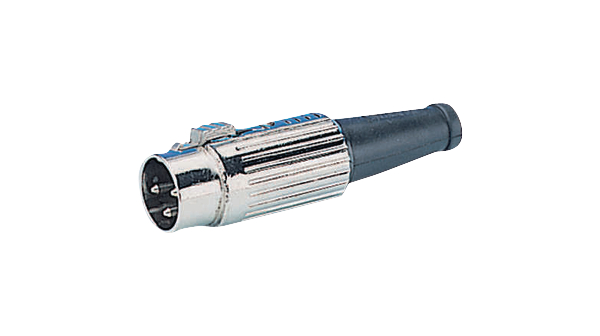

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | DIN Connectors |
| 额定电流 | 4 A |
| 额定电压 | 100 V |
| 颜色 | Black |
| 性别 | Male |
| 端接类型 | Crimp |
| 标准 | DIN |
| 安装风格 | Cable |
| 位置/触点数 | 5 |
| 触点电镀 | Silver |
| 圆弧度 | 240 |
| RoHS | RoHS Compliant |
| 触点材料 | Brass |
| 系列 | :- |
| No. of Contacts | :5 |
| 接触端子 | :Screw |
| Connector Mounting | :Cable |
| Connector Body Material | :Metal |
| SVHC | :No SVHC (20-Jun-2013) |
| 主体镀层 | :Nickel |
| Cable Diameter Max | :5.5mm |
| 颜色 | :Nickel |
| Connector Colour | :Natural |
| 连接器类型 | :Audio, DIN |
| 接触电阻 | :10mohm |
| DC Current Max | :4A |
| External Length / Height | :59.8mm |
| 材质 | :Diecast, Nickel Plated |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-25°C |
| Voltage Rating V AC | :100V |
| Voltage Rating V DC | :100V |
| Weight (kg) | 0.022 |
| Tariff No. | 85369010 |
| Electrical mounting | soldering |
| Mechanical mounting | for cable |
| 额定电流 | 2A |
| Multiplicity | 1 |
| Connector variant | straight |
| Connector type | male |
| Type of pin configuration | 240° |
| 连接器 | plug |
| Gross weight | 0.02 kg |
| Operating temperature | -25...70°C |
| Body coating | nickel plated |
| 针数 | 5 |
| 接触镀层 | silver plated |
| 额定电压 | 34V |
| Max contact resistance: | 10mΩ |
| 锁定系统 | lock |
| Collective package [pcs] | 100 |
| Enclosure material | zinc alloy |
| spg | 100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
