Mean Well

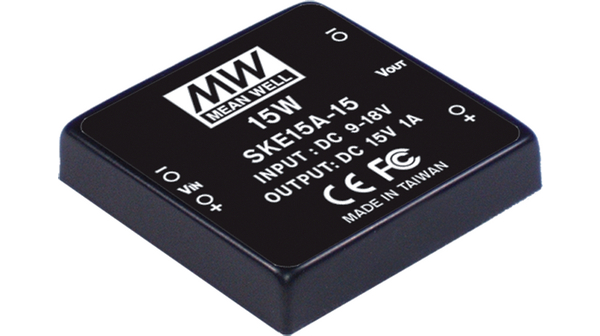

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 系列 | SKE15 |
| 产品种类 | Isolated DC/DC Converters |
| RoHS | RoHS Compliant |
| Dimensions L x W x H | 50.8 x 50.8 x 5.8 mm |
| Output voltage 1 | 12 VDC |
| 功率 | 15 |
| 宽度 | 50.8 |
| Output current 1 | 125...1250 mA |
| 长度 | 50.8 |
| 身高 | 5.8 |
| 效率 | 82 % |
| 连接方式 | THD |
| 输入电压 | 36...72 VDC |
| System deviation, load | 0.5 % |
| System deviation, supply | 0.3 % |
| Residual ripple | 60 mV p-p |
| Operating temperature | -25...+71 °C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
