Mean Well

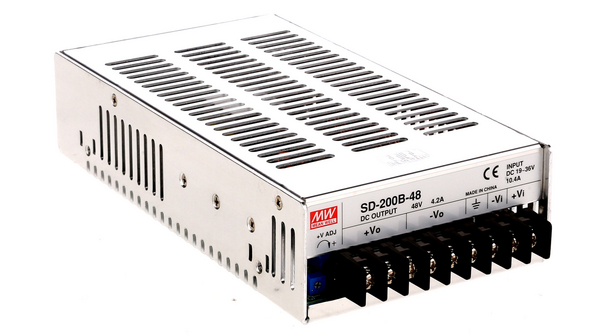

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工厂包装数量 | 50 |
| 产品 | Isolated |
| 产品种类 | Isolated DC/DC Converters |
| 工作温度范围 | - 20 C to + 60 C |
| 系列 | SD-200 |
| 输入电压范围 | 19 V to 36 V |
| 输出电压通道1 | 48 V |
| 输出类型 | Single |
| 身高 | 50 mm |
| 安装风格 | SMD/SMT |
| 宽度 | 115 mm |
| 长度 | 215 mm |
| 隔离电压 | 1500 VAC |
| 输出功率 | 201 W |
| RoHS | RoHS Compliant |
| 输入电压标称 | 48 V |
| 输出电流通道1 | 4.2 A |
| 输出数 | 1 |
| Converter type | DC/DC |
| Body dimensions | 215 x 115 x 50mm |
| 功率 | 201.6W |
| 输出电流 | 4.2A |
| Multiplicity | 1 |
| Insulation voltage | 1.5kV DC |
| Associated items | MHS-012 |
| Gross weight | 1.06 kg |
| 效率 | 86% |
| Operating temperature | -20...60°C |
| 输入电压 | 19...36V |
| 输出电压 | 48V DC |
| 保护功能 | overload, voltage growth, short-circuit |
| 重量 | 1100g |
| Output(s) | 48.0V @ 4.20A |
| 输出电压 | 5 ~ 48 VDC |
| Temp Range | -20 ~ +60°C |
| 输入范围 | 2:1 Input Range |
| Input(s) | 24/48/110 |
| In Stock | 9 |
| 尺寸 | 8.46 x 4.53 x 1.97" |
| Dimensions L x W x H | 215 x 115 x 50 mm |
| Output voltage 1 | 48 VDC |
| Output current 1 | 4.2 A |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
