Mean Well

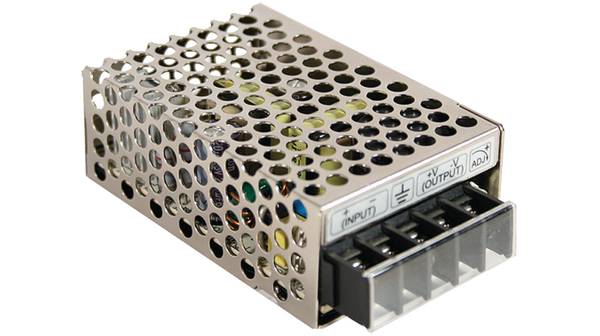

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 输出数 | 1 |
| 输出电压通道1 | 24 V |
| 产品种类 | DC/DC Converters |
| 工厂包装数量 | 50 |
| 系列 | SD-15 |
| 输入电压范围 | 9.2 V to 18 V |
| 输出类型 | Single |
| 封装/外壳尺寸 | 78 mm x 51 mm x 28 mm |
| 输入电压标称 | 12 V |
| RoHS | RoHS Compliant |
| 输出功率 | 15 W |
| 输出电流通道1 | 0.625 A |
| DC / DC Converter Type | :Enclosed |
| DC / DC Converter Output Type | :Fixed |
| Input Voltage DC Min | :9.2V |
| Input Voltage DC Max | :18V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :24V |
| Output Current Max | :625mA |
| Output Power Max | :15W |
| DC / DC Converter Mounting | :Panel |
| Approval Bodies | :CE |
| 效率 | :70% |
| 外部深度 | :28mm |
| External Length / Height | :79mm |
| 外宽 | :51mm |
| Input Voltage Max | :18V |
| Input Voltage Min | :9.2V |
| 隔离电压 | :3kV |
| 线路调整 | :0.2% |
| 负载调整率 | :0.2% |
| Operating Temperature Max | :60°C |
| Operating Temperature Min | :-10°C |
| 输出电流 | :625mA |
| Output Ripple Voltage pk-pk | :150mV |
| 输出电压 | :24V |
| 额定功率 | :15W |
| 电源电压 | :18V |
| Weight (kg) | 0.2 |
| Tariff No. | 85044030 |
| Brand/Series | SD Series |
| 配置 | Enclosed |
| Current, Output | 0.625 A |
| 外形尺寸 | 3.07 L x 2.01 W x 1.10 H In. |
| 安装类型 | Panel |
| 操作 | Switching |
| 输出 | 24VDC@0.625A |
| Power, Output | 15 W |
| Primary Type | DC-DC |
| 特殊功能 | 2-Years Warranty, High Reliability, 100% Full Load Burn-In Test, Short Circuit Protections, Overload Protections, Voltage Protections, Built-In EMI Filter, Low Ripple Noise |
| 类型 | Commercial |
| Voltage, Input | 9.2-18 VDC |
| Voltage, Output | 24 VDC |
| RoHS指令 | RoHS Compliant Part |
| Converter type | DC/DC |
| Body dimensions | 78 x 51 x 25mm |
| 输出电流 | 0.625A |
| 功率 | 15W |
| Multiplicity | 1 |
| 重量 | 180g |
| Associated items | DRL-01, DRP-03A |
| Gross weight | 0.17 kg |
| Operating temperature | -10...60°C |
| 输入电压 | 9.2...18V |
| 输出电压 | 24V DC |
| 保护功能 | overload, voltage growth, short-circuit |
| Collective package [pcs] | 2 |
| spg | 2 |
| Output(s) | 24.0V @ 0.63A |
| 输出电压 | 5 ~ 24 VDC |
| Temp Range | -20 ~ +60°C |
| 输入范围 | 2:1 Input Range |
| Input(s) | 12/24/48 |
| In Stock | 24 |
| 尺寸 | 3.07 x 2 x 1.1" |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
