Mean Well

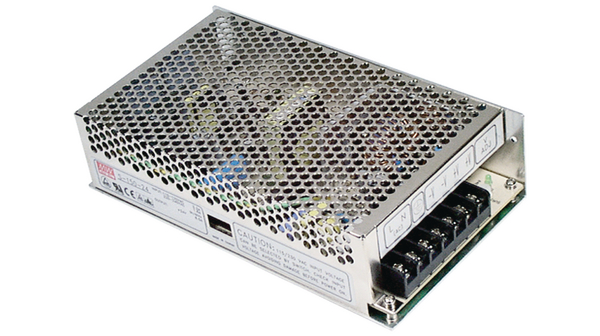

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 输出数 | 1 |
| 产品 | Isolated |
| 产品种类 | DC/DC Converters |
| 封装/外壳尺寸 | 199 mm x 110 mm x 50 mm |
| 工厂包装数量 | 50 |
| 系列 | SD-150 |
| 输入电压范围 | 72 V to 144 V |
| 输出电压通道1 | 12 V |
| 输出类型 | Single |
| 隔离电压 | 1.5 kV |
| 输出功率 | 150 W |
| RoHS | RoHS Compliant |
| 输入电压标称 | 96 V |
| 输出电流通道1 | 12.5 A |
| 引脚数 | 7 |
| 筛选等级 | Commercial |
| 弧度硬化 | No |
| 安装风格 | Desktop |
| 工作温度最高摄氏度。 | 60C |
| 类型 | Step Down |
| 工作温度敏度。 | -10C |
| 产品长度（mm ） | 199 mm |
| 产品厚度（毫米） | 110 mm |
| 产品高度（mm ） | 50 mm |
| 输入电压 | 72 to 144 V |
| 输出电流 | 6.3 A |
| 输出电压 | 24 V |
| 隔离 | Isolated |
| Brand/Series | SD Series |
| 配置 | Enclosed |
| Current, Output | 12.50 A |
| 外形尺寸 | 7.83 L x 4.33 W x 1.97 H In. |
| 安装类型 | Panel |
| 操作 | Switching |
| 输出 | 12VDC@12.5A |
| Power, Output | 150 W |
| Primary Type | DC-DC |
| 特殊功能 | 2-Years Warranty, High Reliability, 100% Full Load Burn-In Test, Short Circuit and Overload and Over Voltage Protections, Built-In EMI Filter, Low Ripple Noise |
| Voltage, Input | 72-144 VDC |
| Voltage, Output | 12 VDC |
| RoHS指令 | RoHS Compliant Part |
| Output(s) | 12.0V @ 12.50A |
| 功率 | 150 Watts |
| 输出电压 | 12 ~ 24 VDC |
| Temp Range | -20 ~ +60°C |
| 输入范围 | 2:1 Input Range |
| 效率 | 79.00% |
| Input(s) | 24/48/110 |
| In Stock | 97 |
| 尺寸 | 7.83 x 4.33 x 1.97" |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
