Mean Well

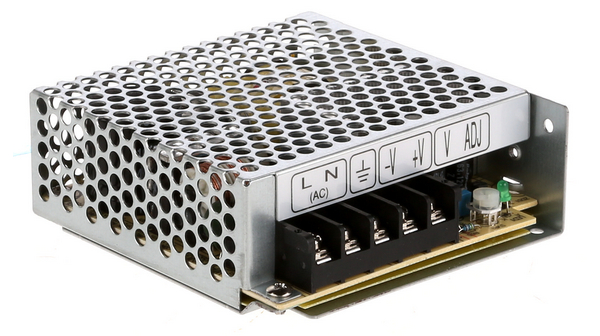

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 输出数 | 1 |
| 产品 | Switching Supplies |
| 产品种类 | Linear and Switching Power Supplies |
| 外形尺寸 | 99 mm L x 97 mm W |
| 工厂包装数量 | 45 |
| 额定输出功率 | 53 W |
| 输出电压通道1 | 48 VDC |
| 身高 | 36 mm |
| 安装风格 | Chassis |
| 宽度 | 97 mm |
| 长度 | 99 mm |
| 输入电压 | 88 VAC to 264 VAC, 125 VDC to 373 VDC |
| RoHS | RoHS Compliant |
| 开放式/封闭式 | Enclosed |
| 输出电流通道1 | 1.1 A |
| Number of outputs | 2 |
| Body dimensions | 99 x 97 x 36mm |
| 功率 | 52.8W |
| 输出电流 | 1.1A |
| Power supply construction | modular |
| Multiplicity | 1 |
| Electrical connection | terminal block |
| 重量 | 410g |
| Associated items | DRL-01, DRP-03A |
| Gross weight | 0.38 kg |
| Power supply/converter features | rated parameters obtained at full load |
| Operating temperature | -25...70°C |
| 输出电压 | 48V DC |
| 电源电压 | 88...264V AC, 125...373V DC |
| 安装 | for building in |
| Pwr sup unit type | pulse |
| 保护功能 | overload, voltage growth, short-circuit |
| Power(Convection) | 50 Watts |
| Output(s) | 48.0V @ 1.10A |
| 系列 | MEAN WELLRS-50 |
| Vout Range | 3.3 ~ 48 VDC |
| 效率 | 89.00% |
| Dimensions (Inches) | 3.90 x 3.82 x 1.42" |
| # of Outputs | 1-4 Output |
| In Stock | 1 |
| Dimensions L x W x H | 99 x 97 x 36 mm |
| Output voltage 1 | 42...54 VDC |
| DC input voltage | 125...373 VDC |
| Output current 1 | 1.1 A |
| AC input voltage | 88...264 VAC |
| Input frequency | 47...63 Hz |
| Derating | 2.5% / °C from 50 °C |
