Mean Well

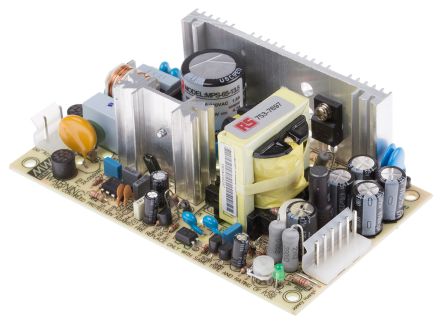

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 42mm |
| 效率 | 78% |
| 输入电压 | 127 → 370 V dc, 90 → 264 V ac |
| 长度 | 127mm |
| 线路调整 | ±1% |
| 负载调整率 | ±2% |
| 最高温度 | +60°C |
| 最低气温 | -10°C |
| 平均无故障时间 | 359700h |
| 输出数 | 1 |
| 输出电流 | 4.7A |
| 输出电压 | 13.5V dc |
| 包装类型 | Open Frame |
| 额定功率 | 63.45W |
| 纹波和噪声 | 100mV Pk-Pk |
| 重量 | 0.23kg |
| 宽度 | 76mm |
| 产品 | Switching Supplies |
| 产品种类 | Switching Power Supplies |
| 外形尺寸 | 5 in L x 3 in W |
| 商用/医用 | Medical |
| 系列 | MPS-65 |
| 额定输出功率 | 63.45 W |
| 输出电压通道1 | 13.5 VDC |
| 身高 | 1.1 in |
| 安装风格 | Chassis |
| RoHS | RoHS Compliant |
| 开放式/封闭式 | Open Frame |
| 输出电流通道1 | 4.7 A |
| Number of outputs | 3 |
| Body dimensions | 127 x 76 x 42mm |
| 输出电流 | 4.7A |
| 功率 | 63.45W |
| Power supply construction | open |
| Multiplicity | 1 |
| Electrical connection | plug with 3,96mm pitch, plug with 5,08mm pitch |
| Gross weight | 0.23 kg |
| Power supply/converter features | rated parameters obtained at full load |
| Operating temperature | -10...60°C |
| 输出电压 | 13.5V DC |
| 电源电压 | 90...264V AC, 127...370V DC |
| 安装 | for building in |
| Pwr sup unit type | pulse |
| 保护功能 | overload, voltage growth, short-circuit |
| Max Power | 65 Wattswith airflow |
| Protection Level | 2xMOPP |
| Output(s) | 13.5V @ 4.70A |
| BF Compliant | |
| Vout Range | 3.3 ~ 48 VDC |
| Dimensions (Inches) | 5.00 x 3.00 x 1.65" |
| # of Outputs | 1-3 Output |
| In Stock | Please Call |
| Convection | 50 Wattsconvection cooled |
| 隔离 | Class I |
| 输出数目 | 1 |
| 最高温度 | +60°C |
| 额定功率 | 63.45W |
| Board Level Components | Y |
| 长度 | 127mm |
| 效能 | 78% |
| 重量 | 0.23kg |
| 最低温度 | -10°C |
| 输入电压 | 90 to 264 V ac, 127 to 370 V dc |
| 负载调节 | ±2% |
| 医疗认证 | 是 |
| 输出电流 | 4.7A |
| 平均故障间隔时间 | 359700h |
| 封装类型 | 开放式 |
| 深度 | 42mm |
| 纹波和噪声 | 100mV 峰峰值 |
| 线路调节 | ±1% |
| 宽度 | 76mm |
| 输出电压 | 13.5 V 直流 |
