Mean Well

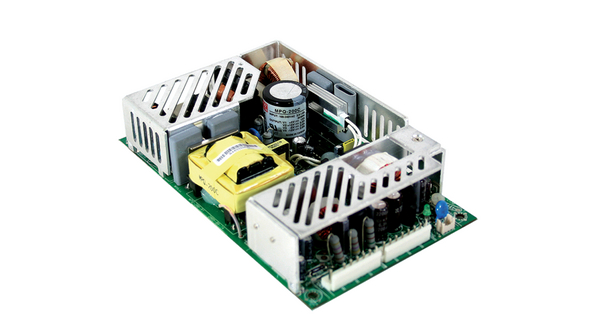

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 35.5mm |
| 效率 | 83% |
| 输入电压 | 127 → 370 V dc, 90 → 264 V ac |
| 长度 | 177.8mm |
| 线路调整 | ±0.5 %, ±1 % |
| 负载调整率 | +4 %, ±1 %, -6 % |
| 最高温度 | +70°C |
| 最低气温 | -20°C |
| 平均无故障时间 | 262100h |
| 输出数 | 2 |
| 输出电流 | 20 A, 4 A |
| 输出电压 | 24 V dc, 5 V dc |
| 包装类型 | Open Frame |
| 额定功率 | 200W |
| 纹波和噪声 | 180 mV Pk-Pk, 80 mV Pk-Pk |
| 重量 | 0.66kg |
| 宽度 | 107.2mm |
| 输出电流通道2 | 4 A |
| 产品 | Switching Supplies |
| 产品种类 | Switching Power Supplies |
| 输出电压通道2点12 V | 24 VDC |
| 商用/医用 | Medical |
| 输出电压通道1 | 5 VDC |
| 安装风格 | Chassis |
| RoHS | RoHS Compliant |
| 工厂包装数量 | 24 |
| 额定输出功率 | 100 W |
| 输出电流通道1 | 20 A |
| Max Power | 200 Wattswith airflow |
| Protection Level | 2xMOPP |
| Output(s) | 5.0V @ 20.00A;24.0V @ 4.00A |
| 系列 | MEAN WELLMPS-200 |
| BF Compliant | |
| Vout Range | 3.3 ~ 48 VDC |
| Dimensions (Inches) | 7.00 x 4.22 x 1.40" |
| # of Outputs | 1-4 Output |
| In Stock | Please Call |
| Convection | 140 Wattsconvection cooled |
| 隔离 | Class I |
| Dimensions L x W x H | 177 x 107.2 x 35.5 mm |
| Output voltage 1 | 5 VDC |
| DC input voltage | 127...370 VDC |
| 功率 | 200 |
| Output voltage 2 | 24 VDC |
| Output current 1 | 20 A |
| Output current 2 | 6 A |
| AC input voltage | 90...264 VAC |
