Mean Well

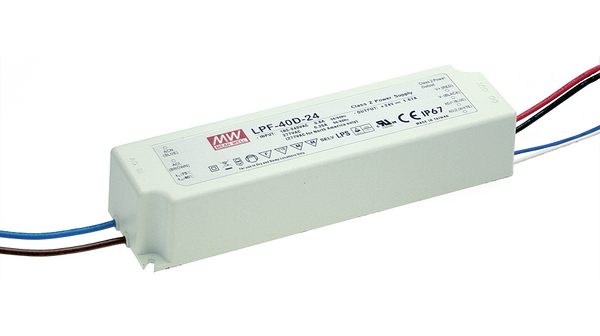

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | LED Drivers Power Supplies |
| RoHS | RoHS Compliant |
| 操作模式 | Constant Current (CC) |
| 额定输出功率 | 40 W |
| 输入电压 | 90 VAC to 305 VAC, 127 VDC to 431 VDC |
| 输出数 | 1 |
| 输出电压（通道1 ） | 20 VDC |
| 输出电流（通道1 ） | 2 A |
| 安装风格 | Chassis |
| 外形尺寸 | 162.5 mm L x 42.5 mm W x 32 mm H |
| 商用/医用 | Commercial |
| 开放式/封闭式 | Enclosed |
| 产品 | Switching Supplies |
| AC或DC输入电压 | AC, DC |
| 应用 | LED Lighting, Moving Signs |
| 调光操作 | 1 to 10 V dc, PWM, Resistance |
| 最大输出功率 | 40W |
| 操作 | Constant Voltage |
| 输出电流 | 2A |
| RoHS指令 | Compliant |
| 输出电压通道1 | 20 VDC |
| 系列 | LPF-40D |
| 输出电流通道1 | 2 A |
| Bulit-In Dimming Control | Res, PWM or 1-10VDC |
| Secondary Circuit Required (Hi-Ripple) | |
| 功率 | 40 W |
| Output(s) | 20.0V @ 2.00A |
| IP Rated | IP67 |
| 输出电压 | 12~54 |
| Package and Dimensions | PLASTIC6.40 x 1.69 x 1.26 |
| Adjust Type | Voltage & Current |
| PFC | PFC |
| Temp Range | -40~+70C |
| 效率 | 86.00% |
| Constant Current or Constant Voltage | CV + CC |
| In Stock | 5 |
| 输入 | 90-305 VAC |
| Eff | 84-89% |
| Supply voltage, AC | 90...305 VAC |
| 重量 | 450 |
| 功率 | 40 |
| 输出电流 | 2 |
| Input frequency | 47...63 Hz |
| Dimensions W x D x H | 162.5 x 43.5 x 32 mm |
| 颜色 | white |
| Operating temperature | -40...+50 °C |
| 身高 | 32 |
| 深度 | 43.5 |
| 输出电压 | 12...20 VDC |
| Termination type | Stranded Wires, 60 cm, 2 x AWG18 |
| 宽度 | 162.5 |
| Protection rating | IP 67 |
| Supply voltage, DC | 127...431 VDC |
