Mean Well

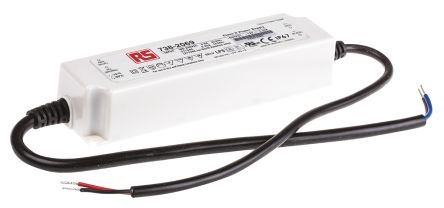

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | LED Drivers Power Supplies |
| RoHS | RoHS Compliant |
| 操作模式 | Constant Current (CC) |
| 额定输出功率 | 40 W |
| 输入电压 | 90 VAC to 305 VAC, 127 VDC to 431 VDC |
| 输出数 | 1 |
| 输出电压（通道1 ） | 12 VDC |
| 输出电流（通道1 ） | 3.34 A |
| 安装风格 | Chassis |
| 外形尺寸 | 162.5 mm L x 42.5 mm W x 32 mm H |
| 商用/医用 | Commercial |
| 开放式/封闭式 | Enclosed |
| 产品 | Switching Supplies |
| 输出电压通道1 | 12 VDC |
| 输出电流通道1 | 3.34 A |
| Brand/Series | LPF Series |
| 配置 | Enclosed |
| Current, Output | 3.34 A |
| 安装类型 | Panel |
| 操作 | PFC |
| 输出 | 12VDC@3.34A |
| Power, Output | 40.08 W |
| Primary Type | AC-DC |
| 特殊功能 | 3-Years Warranty, Short Circuit Protections, Over Current Protections, Over Voltage Protections, Over Temperature Protections |
| 类型 | LED Driver |
| Voltage, Input | 100-305 VAC |
| Voltage, Output | 12 VDC |
| RoHS指令 | RoHS Compliant Part |
| Number of outputs | 1 |
| Body dimensions | 43 x 162.5 x 32mm |
| 功率 | 40.08W |
| 输出电流 | 3.34A |
| 应用 | for LED diodes |
| Multiplicity | 1 |
| Electrical connection | 300mm wires |
| 重量 | 0.44kg |
| Gross weight | 0.44 kg |
| Pwr sup unit type | pulse |
| Operating temperature | -40...70°C |
| 输出电压 | 12V DC |
| Additional functions | power factor correction function |
| 电源电压 | 90...305V AC, 127...431V DC |
| 密封 | IP67 |
| 保护功能 | overload, overheating, voltage growth, short-circuit |
| Power supply/converter features | rated parameters obtained at full load |
| Bulit-In Dimming Control | |
| Secondary Circuit Required (Hi-Ripple) | |
| 功率 | 40 W |
| Output(s) | 12.0V @ 3.34A |
| IP Rated | IP67 |
| 输出电压 | 12~54 |
| Package and Dimensions | PLASTIC6.40 x 1.69 x 1.26 |
| 系列 | MEAN WELLLPF-40 |
| Adjust Type | |
| PFC | PFC |
| Temp Range | -40~+70C |
| 效率 | 84.00% |
| Constant Current or Constant Voltage | CV + CC |
| In Stock | 36 |
| 输入 | 90-305 VAC |
| Eff | 84-90% |
| 输出数目 | 1 |
| IP 防护等级 | IP67 |
| 交流或直流输入电压 | 交流，直流 |
| 输入电压 | 127 → 431 V 直流；90 → 305 V 交流 |
| 输出电流 | 3.34A |
| 最大输出功率 | 40.08W |
| 操作 | 恒定电压 |
| 额定电压 | 90 → 305 V ac, 127 → 431 V dc |
| 输出电压 | 12V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
