Mean Well

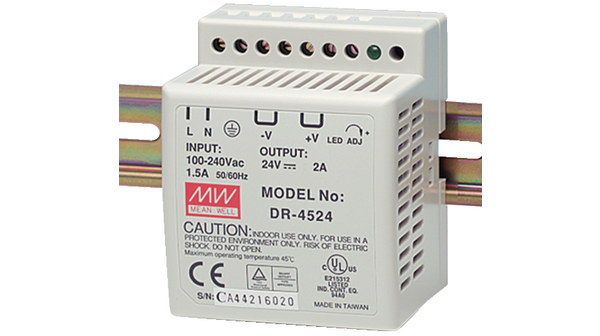

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 子类别 | Not Specified |
| 交货期 | 70 Days |
| 输出数 | 1 |
| 产品 | Switching Supplies |
| 产品种类 | DIN Rail Power Supplies |
| 工厂包装数量 | 50 |
| 商用/医用 | Commercial |
| 输出电压通道1 | 5 V |
| 输出类型 | DC |
| 安装风格 | DIN Rail |
| 输入电压 | 85 VAC to 264 VAC, 120 VDC to 370 VDC |
| RoHS | RoHS Compliant |
| 额定输出功率 | 25 W |
| 输出电流通道1 | 5 A |
| Number of outputs | 2 |
| Body dimensions | 93 x 78 x 67mm |
| 功率 | 25W |
| 输出电流 | 5A |
| Pwr sup unit type | pulse |
| Multiplicity | 1 |
| Electrical connection | terminal block |
| 重量 | 310g |
| Gross weight | 0.32 kg |
| Power supply/converter features | rated parameters obtained at full load |
| Operating temperature | -10...50°C |
| 输出电压 | 5V DC |
| 电源电压 | 85...264V AC, 120...370V DC |
| 安装 | DIN |
| 保护功能 | overload, overheating, voltage growth, short-circuit |
| 外形尺寸 | see |
| Input voltage, DC min | 120 |
| Output voltage 1 max | 5.5 |
| 阶段 | 1 |
| Input voltage, AC min | 85 |
| Output voltage, nominal | 5 VDC |
| Efficiency max | 89 |
| Output current 1 | 5.0 A |
| Input voltage, AC max | 264 |
| Input voltage, DC max | 370 |
| 身高 | 93 |
| 宽度 | 78 |
| 深度 | 67 |
| Input voltage, nominal | 100...240 VAC |
| Output voltage 1 min | 4.75 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
