Mean Well

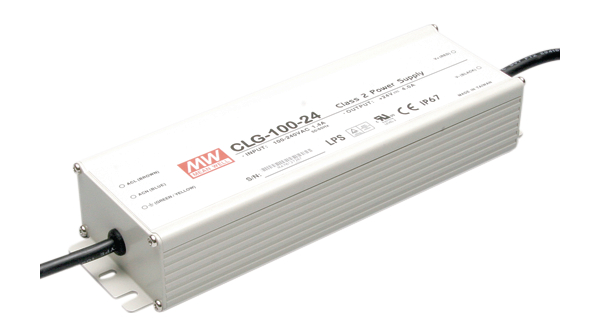

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | LED Drivers Power Supplies |
| RoHS | RoHS Compliant |
| 操作模式 | Constant Current (CC) |
| 额定输出功率 | 132 W |
| 输入电压 | 90 VAC to 295 VAC, 127 VDC to 417 VDC |
| 输出数 | 1 |
| 输出电压（通道1 ） | 12 VDC |
| 输出电流（通道1 ） | 11 A |
| 安装风格 | Plug In |
| 外形尺寸 | 222.2 mm L x 68 mm W x 38.8 mm H |
| 商用/医用 | Commercial |
| 开放式/封闭式 | Enclosed |
| 产品 | Switching Supplies |
| 系列 | CLG-150 |
| 子类别 | Not Specified |
| 交货期 | 70 Days |
| 输出电压通道1 | 12 VDC |
| 输出电流通道1 | 11 A |
| 引脚数 | 5 |
| 筛选等级 | Commercial |
| 弧度硬化 | No |
| 工作温度最高摄氏度。 | 70C |
| 类型 | Switching |
| 工作温度敏度。 | -30C |
| 效率 | 88 % |
| 产品厚度（毫米） | 68 mm |
| 产品高度（mm ） | 38.8 mm |
| 输出电压 | 12 V |
| 输出电流 | 11 A |
| 输出功率（最大） | 132 W |
| 输入频率 | 47 to 63 Hz |
| 产品长度（mm ） | 222.2 mm |
| 输出功率 | 132 W |
| 产品范围 | :MEAN WELL - CLG-150 Series |
| LED Driver Mode | :Constant Current |
| Input Voltage Min | :90V |
| Input Voltage Max | :265V |
| Output Voltage Max | :12V |
| Output Power Max | :132W |
| SVHC | :No SVHC (20-Jun-2013) |
| 深度 | :38.8mm |
| Dimming Control Type | :PWM |
| 身高 | :38.8mm |
| Input Voltage VAC | :90V to 295V |
| 长度 | :222.2mm |
| No. of Channels | :1 |
| No. of Outputs | :1 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-30°C |
| 工作温度范围 | :-30°C to +70°C |
| Output Current Max | :11A |
| Output Voltage Nom. | :12V |
| Power Supply Mounting | :Chassis |
| Power Supply Output Type | :Adjustable, Fixed |
| 端接类型 | :Flying Leads |
| 宽度 | :68mm |
| Weight (kg) | 1 |
| Tariff No. | 85044090 |
| Brand/Series | CLG Series |
| 配置 | Enclosed |
| Current, Output | 11 A |
| 安装类型 | Panel |
| 操作 | PFC |
| 输出 | 12VDC@11A |
| Power, Output | 132 W |
| Primary Type | AC-DC |
| 特殊功能 | 3-Years Warranty, Short Circuit Protections, Over Current Protections, Over Voltage Protections, Over Temperature Protections |
| Voltage, Input | 90-295 VAC |
| Voltage, Output | 12 VDC |
| RoHS指令 | RoHS Compliant Part |
| Number of outputs | 1 |
| Body dimensions | 68 x 222.2 x 38.8mm |
| 功率 | 132W |
| 输出电流 | 11A |
| 应用 | for LED diodes |
| Multiplicity | 1 |
| Electrical connection | 300mm wires |
| 重量 | 1kg |
| Gross weight | 1.05 kg |
| Pwr sup unit type | pulse |
| Operating temperature | -30...70°C |
| 输出电压 | 12V DC |
| 电源电压 | 90...264V AC |
| 密封 | IP67 |
| 保护功能 | overload, overheating, voltage growth, short-circuit |
| Power supply/converter features | rated parameters obtained at full load |
| Bulit-In Dimming Control | |
| Secondary Circuit Required (Hi-Ripple) | |
| 功率 | 150 W |
| Output(s) | 12.0V @ 11.00A |
| IP Rated | IP65/67 |
| 输出电压 | 12~48 |
| Package and Dimensions | METAL8.75 x 2.68 x 1.53" |
| Adjust Type | Voltage & Current |
| PFC | PFC |
| Temp Range | -30~+70C |
| Constant Current or Constant Voltage | CV + CC |
| In Stock | 259 |
| 输入 | 90-295 VAC |
| Eff | 88-91% |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
