Mean Well

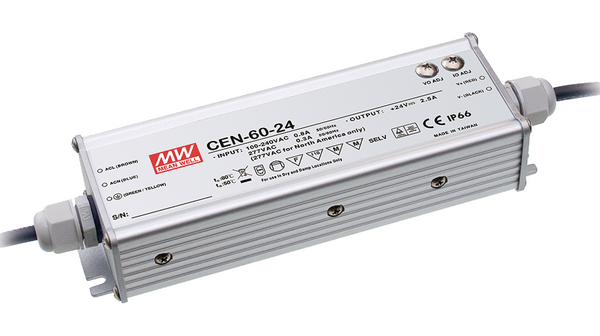

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | LED Drivers Power Supplies |
| RoHS | RoHS Compliant |
| 操作模式 | Constant Current (CC) |
| 额定输出功率 | 60 W |
| 输入电压 | 90 VAC to 295 VAC, 127 VDC to 417 VDC |
| 输出数 | 1 |
| 输出电压（通道1 ） | 15 VDC |
| 输出电流（通道1 ） | 4 A |
| 安装风格 | Chassis |
| 外形尺寸 | 185 mm L x 62.5 mm W x 40.5 mm H |
| 商用/医用 | Commercial |
| 产品 | Switching Supplies |
| 系列 | CEN-60 |
| 子类别 | Not Specified |
| 交货期 | 70 Days |
| 输出电压通道1 | 15 VDC |
| 单位重量 | 1.235 lbs |
| 输出电流通道1 | 4 A |
| Number of outputs | 1 |
| 功率 | 60W |
| 输出电流 | 4A |
| 应用 | for LED diodes |
| Multiplicity | 1 |
| Electrical connection | 300mm wires |
| 重量 | 560g |
| Gross weight | 1 g |
| Pwr sup unit type | pulse |
| Operating temperature | -30...70°C |
| 输出电压 | 13.5...17V DC, 15V DC |
| 电源电压 | 90...295V AC, 127...417V DC |
| 密封 | IP66 |
| 保护功能 | overload, overheating, voltage growth, short-circuit |
| Power supply/converter features | rated parameters obtained at full load |
| Bulit-In Dimming Control | |
| Secondary Circuit Required (Hi-Ripple) | |
| 功率 | 60 W |
| Output(s) | 15.0V @ 4.00A |
| IP Rated | IP66 |
| 输出电压 | 12~54 |
| Package and Dimensions | METAL7.28 x 2.46 x 1.59" |
| Adjust Type | Voltage & Current |
| PFC | PFC |
| Temp Range | -30~+70C |
| 效率 | 87.00% |
| In Stock | 19 |
| 输入 | 90-295 VAC |
| Eff | 86-91% |
| Supply voltage, AC | 90...295 VAC |
| Supply voltage, DC | 127...417 VDC |
| 身高 | 40.5 |
| 宽度 | 62.5 |
| 长度 | 183 |
| Termination type | Cable 0.3 m |
| Protection rating | IP 66 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
