Mean Well

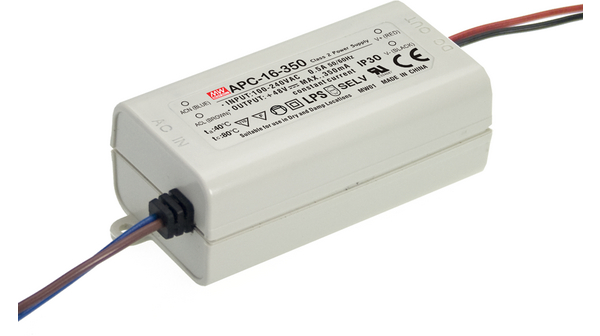

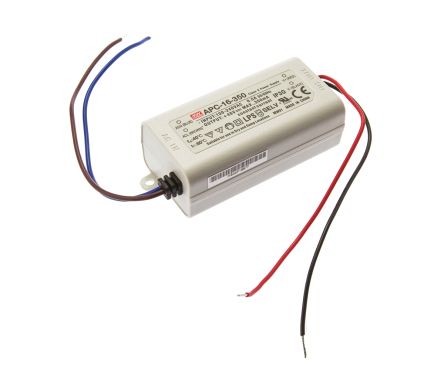

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | LED Drivers Power Supplies |
| RoHS | RoHS Compliant |
| 操作模式 | Constant Current (CC) |
| 额定输出功率 | 16.8 W |
| 输入电压 | 90 VAC to 264 VAC, 127 VDC to 370 VDC |
| 输出数 | 1 |
| 输出电压（通道1 ） | 12 VDC to 48 VDC |
| 输出电流（通道1 ） | 350 mA |
| 安装风格 | Desktop |
| 外形尺寸 | 77 mm L x 40 mm W x 29 mm H |
| 商用/医用 | Commercial |
| 开放式/封闭式 | Enclosed |
| 产品 | Switching Supplies |
| 系列 | APC-16 |
| 子类别 | Not Specified |
| 交货期 | 70 Days |
| AC或DC输入电压 | AC, DC |
| 应用 | LED Lighting, Moving Signs |
| 最大输出功率 | 16.8W |
| 操作 | Constant Current |
| 输出电流 | 350mA |
| RoHS指令 | Compliant |
| 输出电压通道1 | 12 VDC to 48 VDC |
| 输出电流通道1 | 350 mA |
| Brand/Series | APC Series |
| 配置 | Enclosed |
| 安装类型 | Panel |
| 输出 | 48VDC@0.35A |
| Power, Output | 16.8 W |
| Primary Type | AC/DC |
| 特殊功能 | Short Circuit and Over Voltage Protections, IP30 design, 2-Years Warranty |
| 类型 | LED Driver |
| Voltage, Input | 100 to 264 VAC |
| Voltage, Output | 48 VDC |
| Number of outputs | 1 |
| Body dimensions | 77 x 40 x 29mm |
| 功率 | 16.8W |
| 输出电流 | 350mA |
| Multiplicity | 1 |
| Electrical connection | 150mm wires |
| 重量 | 100g |
| Gross weight | 0.1 kg |
| Pwr sup unit type | pulse |
| Operating temperature | -30...70°C |
| 输出电压 | 12...48V DC |
| 电源电压 | 127...370V DC, 90...264V AC |
| 密封 | IP30 |
| 保护功能 | voltage growth |
| Power supply/converter features | rated parameters obtained at full load |
| Bulit-In Dimming Control | |
| Secondary Circuit Required (Hi-Ripple) | |
| 功率 | 16 W |
| Output(s) | 12.0V @ 0.35A |
| IP Rated | IP30 |
| 输出电压 | 9~48 |
| Package and Dimensions | PLASTIC3.03 x 1.57 x 1.14" |
| Adjust Type | |
| PFC | |
| Temp Range | -30~+70C |
| 效率 | 84.00% |
| Constant Current or Constant Voltage | CC |
| In Stock | 140 |
| 输入 | 90-264 VAC |
| Eff | 83-84% |
| Supply voltage, DC | 9...24 VDC |
| 身高 | 29 |
| 宽度 | 40 |
| 长度 | 77 |
| Supply voltage, AC | 90...264 VAC |
| IP 防护等级 | IP30 |
| 交流或直流输入电压 | 交流，直流 |
| 输入电压 | 127 → 370 V 直流；90 → 264 V 交流 |
| 输出电流 | 0.35A |
| 最大输出功率 | 16.8W |
| 操作 | 恒定电流 |
| 额定电压 | 90 → 264 V ac, 127 → 370 V dc |
| 输出电压 | 12 → 48V |
