Mean Well

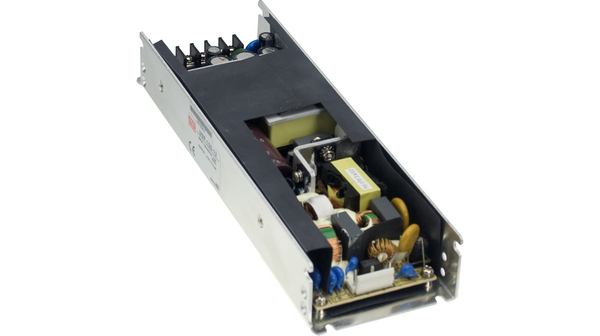

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 输出电压通道1 | 24 VDC |
| 产品种类 | Linear and Switching Power Supplies |
| 外形尺寸 | 215 mm L x 67.4 mm W |
| 额定输出功率 | 151.2 W |
| 产品 | Switching Supplies |
| 身高 | 33 mm |
| 安装风格 | Panel |
| 宽度 | 67.4 mm |
| 长度 | 215 mm |
| 输入电压 | 90 VAC to 295 VAC |
| RoHS | RoHS Compliant |
| 开放式/封闭式 | Open Frame |
| 输出电流通道1 | 6.3 A |
| Brand/Series | USP Series |
| 配置 | Open-Frame |
| Current, Output | 6.3 A |
| 安装类型 | Panel |
| 输出数 | 1 |
| 操作 | PFC |
| 输出 | 24VDC@6.3A |
| Power, Output | 151 W |
| Primary Type | AC-DC |
| 特殊功能 | 3-Years Warranty, Constant Voltage Design, Low Profile, ZVS Technology, Short Circuit Protections, Overload Protections, Over Voltage Protections, Over Temperature Protections |
| 类型 | Commercial |
| Voltage, Input | 100-264 VAC |
| Voltage, Output | 24 VDC |
| RoHS指令 | RoHS Compliant Part |
| Max Power | 150 Wattswith airflow |
| Output(s) | 24.0V @ 6.30A |
| 系列 | MEAN WELLUSP-150 |
| Vout Range | 12 ~ 48 |
| 效率 | 93.00% |
| Dimensions (Inches) | 8.46 x 2.64 x 1.30" |
| # of Outputs | 1 |
| In Stock | Please Call |
| Convection | 150 Wattsconvection cooled |
| Dimensions L x W x H | 215 x 67.4 x 33 mm |
| Output voltage 1 | 24 VDC |
| DC input voltage | 127...370 VDC |
| 功率 | 150 |
| Output current 1 | 6.3 A |
| 重量 | 0.48 |
| AC input voltage | 90...264 VAC |
| Input frequency | 47...63 Hz |
| Operating temperature | -10...+65 °C |
| Short-circuit strength | continuous |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
