Optek Technology

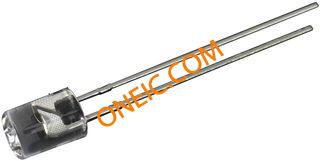

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 主波长 | 525 |
| 安装 | Through Hole |
| Maximum Forward Current | 25 |
| PCB | 2 |
| 最大功率耗散 | 100 |
| 类型 | Uni-Color |
| 可视角度 | 85 |
| 反向电压 | 5 |
| 欧盟RoHS指令 | Compliant |
| 透镜外观 | Colorless Non Diffused |
| Maximum Forward Voltage per Color | 4 |
| 最低工作温度 | -40 |
| LED材料 | InGaN |
| Lens Dimensions | 5x5x6.8 |
| 供应商封装形式 | T-1 3/4 |
| 标准包装名称 | T-1 3/4 |
| 安装方向 | Top Mount |
| 最高工作温度 | 100 |
| LED的数量 | 1 |
| 引脚数 | 2 |
| 颜色 | Green |
| Package Diameter | 5.05 |
| 封装 | Tape and Reel |
| Package Height | 6.8 |
| 强度 | 2400mcd |
| 透镜形状类型 | Circular |
| 高亮度 | Yes |
| Bulb Size | :T-1 3/4 (5mm) |
| 指示灯颜色 | :Green |
| 发光强度 | :1.2cd |
| 可视角度 | :85° |
| Forward Current If | :20mA |
| 正向电压 | :3.4V |
| LED Mounting | :Through Hole |
| 透镜形状 | :Round |
| Wavelength Typ | :525nm |
| 主波长 | :525nm |
| Forward Current If Max | :20mA |
| Forward Voltage VF Max | :4V |
| LED / Lamp Size | :5mm / T-1 3/4 |
| LED Type | :Standard |
| Luminous Intensity Typ | :1200mcd |
| 安装类型 | :PCB Through Hole |
| No. of Pins | :2 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 工作温度范围 | :-40°C to +85°C |
| Opto Case Style | :Through Hole |
| Weight (kg) | 0.00028 |
| Tariff No. | 85414010 |
| Color, Emitted | Green |
| 包装类型 | T1-3/4 (5 mm) |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
