NTE ELECTRONICS

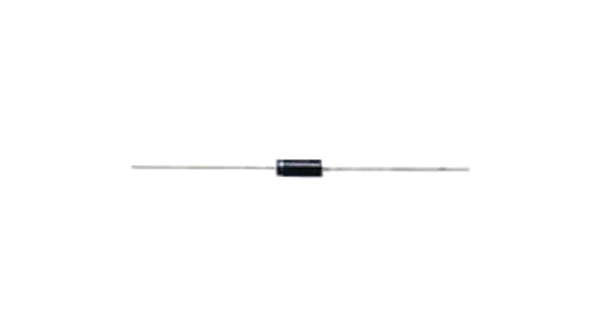

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 二极管类型 | :Standard Recovery |
| 二极管配置 | :Single |
| Repetitive Reverse Voltage Vrrm Max | :1.5kV |
| Forward Current If(AV) | :500mA |
| Forward Voltage VF Max | :2V |
| Reverse Recovery Time trr Max | :500ns |
| Weight (kg) | 0.002 |
| Tariff No. | 85411000 |
| Capacitance, Junction | 9 pF |
| 配置 | Single-Phase |
| Current, Forward | 500 mA |
| Current, Reverse | 5 μA |
| Current, Surge | 30 A |
| 外形尺寸 | 7.0 mm L x 4.0 mm Dia. |
| 包装类型 | DO-41 |
| Primary Type | Rectifier |
| Speed, Switching | Fast |
| Temperature, Junction, Maximum | 125 °C |
| Temperature, Operating | -65 to 125 °C |
| 端子 | Axial Leaded |
| Time, Recovery | 500 ns |
| Voltage, Forward | 2 V |
| Voltage, Reverse | 1500 V |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
