everlight electronics

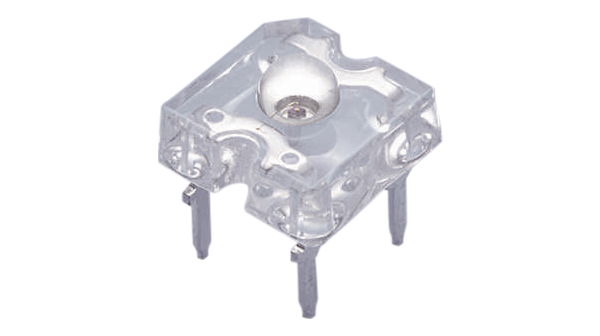

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 引脚数 | 4 |
| 类型 | Uni-Color |
| LED的数量 | 1 |
| 主波长/色温 | 591 nm |
| 峰值波长 | 589 nm |
| 颜色 | Yellow |
| 光通量 | 2 lm |
| 透镜外观 | Colorless Non Diffused |
| 透镜形状类型 | Circular |
| 可视角度 | 70 ° |
| 安装方向 | Top Mount |
| 安装 | Through Hole |
| 标准包装 | Bulk |
| Dominant Wavelength | 591 |
| Maximum Forward Current | 70 |
| Package Width | 7.62 |
| PCB | 4 |
| Maximum Power Dissipation | 100 |
| 可视角度 | 70 |
| 反向电压 | 5 |
| 欧盟RoHS指令 | Compliant |
| Maximum Forward Voltage per Color | 2.91 |
| 峰值波长 | 589 |
| 最低工作温度 | -40 |
| LED材料 | AlGaInP |
| Lens Dimensions | 5x5x1.5 |
| 最高工作温度 | 85 |
| Package Length | 7.62 |
| Package Height | 4 |
| 高亮度 | No |
| Peak wave length | 589 |
| Lens size | 7.62 x 7.62 mm |
| Off-state voltage | 5 V |
| 光通量 | 1.31 |
| Light colour | yellow |
| Operating temperature | -40...+85 °C |
| Rated on-state current | 70 |
| 正向电压 | 1.71...2.91 V |
| Case colour | colourless |
| Dominant wavelength | 591 |
| Transmission angle | 70 |
| Off-state current | 10 µA |
| Housing type | clear |
| 技术 | AllnGaP |
