Exar

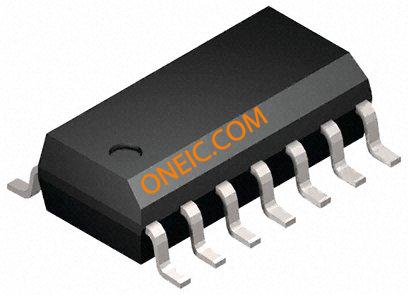

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | RS-485 Interface IC |
| RoHS | RoHS Compliant |
| 数据传输速率 | 10 Mbps |
| 工作电源电压 | 5 V |
| 电源电流 | 900 uA |
| 工作温度范围 | 0 C to + 70 C |
| 安装风格 | SMD/SMT |
| 封装/外壳 | SOIC-14 Narrow |
| 封装 | Tube |
| 功能 | Full Duplex |
| 最高工作温度 | + 70 C |
| 最低工作温度 | 0 C |
| 驱动器数 | 1 |
| 接收器数 | 1 |
| 关机 | No |
| 典型的单电源电压 | 5 |
| 数据传输拓扑 | Multidrop|Multipoint |
| 筛选等级 | Commercial |
| 欧盟RoHS指令 | Compliant |
| 最大电源电流 | 0.9(Typ) |
| 电源类型 | Single |
| 收发器数量 | 1 |
| 最低工作温度 | 0 |
| 变送器数 | 1 |
| 供应商封装形式 | SOIC N |
| 标准包装名称 | SOIC |
| 接收机信号类型 | Differential |
| 最高工作温度 | 70 |
| Maximum Single Supply Voltage | 5.25 |
| 发射信号类型 | Differential |
| 引脚数 | 14 |
| Minimum Single Supply Voltage | 4.75 |
| 接口标准 | RS-422|RS-485 |
| 铅形状 | Gull-wing |
| 协议 | RS485 |
| 安装类型 | Surface Mount |
| 标准包装 | 56 |
| 复式 | Full |
| 的驱动器/接收器数 | 1/1 |
| 供应商设备封装 | 14-SOICN |
| 接收器滞后 | 70mV |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 电源 | 4.75 V ~ 5.25 V |
| 类型 | Transceiver |
| RoHS指令 | Lead free / RoHS Compliant |
| 封装/外壳 | 14-SOIC (0.154", 3.90mm Width) |
| 外形尺寸 | 8.65 x 3.9 x 1.65mm |
| 身高 | 1.65mm |
| 长度 | 8.65mm |
| 每个线路驱动器数量 | 1 (RS422), 32 (RS485) |
| 每行接收器数 | 10 (RS422), 32 (RS485) |
| 包装类型 | SOIC N |
| 典型的单电源电压 | 5 V |
| 宽度 | 3.9mm |
| 系列 | SP490E/SP491E |
| 工厂包装数量 | 56 |
| 设备类型 | :Line Driver / Receiver |
| IC Interface Type | :RS422, RS485 |
| No. of Drivers | :1 |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :5.25V |
| Driver Case Style | :SOIC |
| No. of Pins | :14 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 2 - 1 year |
| Base Number | :491 |
| IC Generic Number | :491 |
| IC Temperature Range | :Commercial |
| Line / Bus Driver / Receiver / Transceiver Type | :RS-485 |
| Logic Function Number | :491 |
| 功耗 | :1000mW |
| 电源电压 | :5V |
| Supply Voltage Range | :4.75V to 5.25V |
| Voltage Vcc | :7V |
| Weight (kg) | 0.001667 |
| Tariff No. | 85423190 |
| 案例 | SO14 |
| Receivers amount | 1 |
| 安装 | SMD |
| Transmitters quantity | 1 |
| Gross weight | 0.87 g |
| 电源电压 | 5V DC |
| Multiplicity | 1 |
| 接口 | RS422 / RS485 |
| Integrated circuit type | line transmitter-receiver |
| Collective package [pcs] | 56 |
| spg | 56 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
