maxim integrated

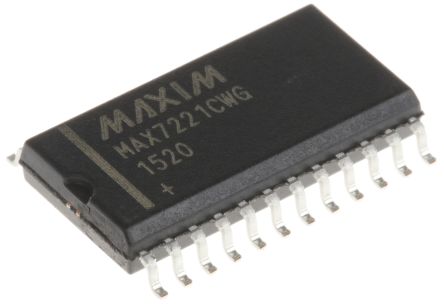

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 24SOIC W |
| 高电平输出电流 | -45000 uA |
| 低电平输出电流 | 320000(Min) uA |
| 工作电源电压 | 4 to 5.5 V |
| 数字位数 | 8 |
| 最大功率耗散 | 941 mW |
| 段数 | 64 |
| 标准包装 | Bulk |
| 标准包装 | Rail / Tube |
| RoHS | RoHS Compliant |
| 安装风格 | SMD/SMT |
| 封装/外壳 | SOIC-24 Wide |
| 最大电源电流 | 330 mA |
| 最高工作温度 | + 70 C |
| 最低工作温度 | 0 C |
| 封装 | Tube |
| 功率耗散 | 941 mW |
| 系列 | MAX7221 |
| 工厂包装数量 | 30 |
| 寿命 | Obsolete |
| 显示器类型 | LED |
| 安装类型 | Surface Mount |
| 数字或字符 | 8 Digits |
| 供应商设备封装 | 24-SOIC W |
| 工作温度 | 0°C ~ 70°C |
| 电流 - 电源 | 330mA |
| 电压 - 电源 | 4 V ~ 5.5 V |
| 接口 | 4-Wire Serial |
| 配置 | 7 Segment + DP |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 15.6 x 7.6 x 2.35mm |
| 身高 | 2.35mm |
| 长度 | 15.6mm |
| 匹配 | 3% |
| 包装类型 | SOIC W |
| 引脚数 | 24 |
| 典型工作电源电压 | 5 V |
| 宽度 | 7.6mm |
| 拓扑结构 | :Common Cathode |
| No. of Outputs | :8 |
| 输出电流 | :320mA |
| 输出电压 | :4.5V |
| Driver Case Style | :SOIC |
| Input Voltage Min | :4V |
| Input Voltage Max | :5.5V |
| Dimming Control Type | :Analogue, Digital |
| 开关频率 | :10MHz |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :7221 |
| Character Type | :8 Digit |
| Data / Control Interface | :Serial 4 Wire |
| 设备类型 | :LED |
| IC Generic Number | :7221 |
| IC Temperature Range | :Commercial |
| 输入电压 | :4V to 5.5V |
| LED Display Type | :7 Segment / Bar Graph |
| LED Driver Application | :Display, Panel Meters |
| No. Segments | :7 |
| No. of Pins | :24 |
| 工作温度范围 | :0°C to +70°C |
| Weight (kg) | 0.000001 |
| Tariff No. | 85423190 |
| 案例 | SO24 |
| 安装 | SMD |
| Integrated circuit type | driver |
| Gross weight | 1.53 g |
| Operating temperature | 0...70°C |
| 电源电压 | 4...5.5V DC |
| Multiplicity | 1 |
| Kind of integrated circuit | display controller |
| Collective package [pcs] | 30 |
| 显示 | 7 Segment |
| spg | 30 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
