maxim integrated

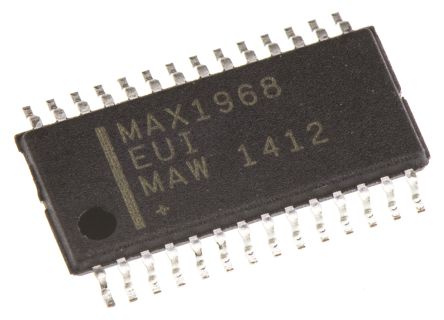

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 28TSSOP |
| 工作温度 | -40 to 85 °C |
| 标准包装 | Bulk |
| 标准包装 | Rail / Tube |
| 产品 | Half-Bridge Drivers |
| 驱动器数 | 1 |
| 输出电流 | 3 A |
| 电源电压 - 最大 | 5.5 V |
| 电源电压 - 最小 | 3 V |
| 电源电流 | 3 mA |
| 最大功率耗散 | 1.9 W |
| 类型 | Non-Inverting |
| 工作电源电压 | 5 V |
| 系列 | MAX1968 |
| 安装类型 | Surface Mount |
| 供应商设备封装 | 28-TSSOP-EP |
| 封装 | Tube |
| 应用范围 | Thermoelectric Cooler |
| 电压 - 电源 | 3 V ~ 5.5 V |
| 封装/外壳 | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 9.8 x 4.5 x 0.95mm |
| 身高 | 4.5mm |
| 输入逻辑相容性 | CMOS |
| 长度 | 9.8mm |
| 最大工作电源电压 | 5.5 V |
| 最高工作温度 | +85 °C |
| 最低工作电源电压 | 3 V |
| 最低工作温度 | -40 °C |
| 输出数 | 2 |
| 包装类型 | TSSOP EP |
| 峰值输出电流 | 4.5A |
| 引脚数 | 28 |
| 宽度 | 4.5mm |
| 安装风格 | SMD/SMT |
| 封装/外壳 | TSSOP-28 |
| RoHS | RoHS Compliant |
| Laser Driver Type | :Thermoelectric Cooler |
| Driver Case Style | :TSSOP |
| No. of Pins | :28 |
| Supply Voltage Min | :3V |
| Supply Voltage Max | :5.5V |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Bias Current | :100nA |
| Brief Features | :High-Efficiency Switch-Mode Design, Adjustable TEC Voltage Limit |
| Digital IC Case Style | :TSSOP |
| IC Function | :Power Drivers for Peltier TEC Modules |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 工作温度范围 | :-40°C to +85°C |
| Supply Voltage Range | :3V to 5.5V |
| Weight (kg) | 0.000426 |
| Tariff No. | 85423990 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
