STMicroelectronics

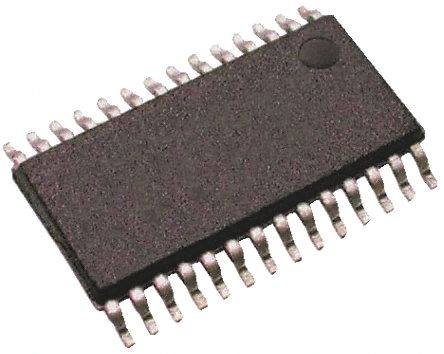

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 功能 | Driver - Fully Integrated, Control and Power Stage |
| 安装类型 | Surface Mount |
| 应用范围 | General Purpose |
| 电压 - 负载 | 8 V ~ 45 V |
| 供应商设备封装 | 28-HTSSOP |
| 封装 | Tube |
| 电流 - 输出 | 3A |
| 工作温度 | -40°C ~ 150°C |
| 电机型号 - 步进 | Bipolar |
| 电压 - 电源 | 3.3V, 5V |
| 标准包装 | 50 |
| 接口 | SPI |
| 输出配置 | Full H-Bridge, (2) Dual |
| 封装/外壳 | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| 工作电源电压 | 8 V to 45 V |
| 安装风格 | SMD/SMT |
| 产品 | Stepper Motor Controllers / Drivers |
| 产品种类 | Motor / Motion / Ignition Controllers & Drivers |
| 类型 | 2 Phase Stepper Motor Driver |
| 功率耗散 | 5 W |
| 封装/外壳 | HTSSOP-28 |
| 电源电流 | 0.5 mA |
| RoHS | RoHS Compliant |
| 包装类型 | HTSSOP EP |
| 工作温度（最大） | 150C |
| 工作温度（最小值） | -40C |
| 工作温度分类 | Automotive |
| 弧度硬化 | No |
| 工作电源电压（最小值） | 8 V |
| 工作电源电压（最大值） | 45 V |
| Motor Type | :Stepper |
| No. of Outputs | :2 |
| 输出电流 | :3A |
| 输出电压 | :45V |
| Driver Case Style | :HTSSOP |
| No. of Pins | :28 |
| Supply Voltage Min | :3.3V |
| Supply Voltage Max | :5V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.0109 |
| Tariff No. | 85423990 |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
