stmicroelectronics

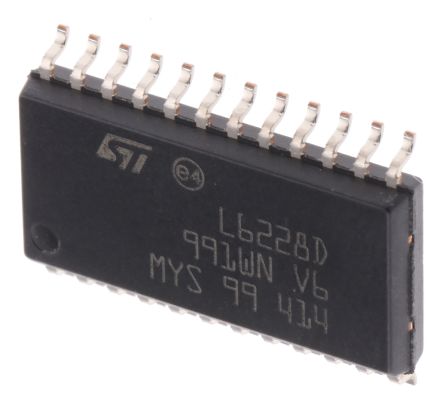

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 24SO |
| 类型 | Bipolar Stepper Motor Driver |
| 最大工作电流 | 10 mA |
| 关断阈值 | 5.5 V |
| 工作温度 | -40 to 150 °C |
| 安装 | Surface Mount |
| 标准包装 | Rail / Tube |
| 供应商封装形式 | SO |
| 标准包装名称 | SOIC |
| 最大工作电流 | 10 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 150 |
| 包装高度 | 2.35(Max) |
| 最大工作电源电压 | 52 |
| 包装宽度 | 7.6(Max) |
| PCB | 24 |
| 包装长度 | 15.6(Max) |
| 最低工作温度 | -40 |
| 最低工作电源电压 | 8 |
| 引脚数 | 24 |
| 铅形状 | Gull-wing |
| 匹配代码 | L6228D |
| T（最大） | 125°C |
| 单位包 | 32 |
| 汽车 | NO |
| 最小起订量 | 800 |
| T（分钟） | -25°C |
| 无铅Defin | RoHS-conform |
| 标准的提前期 | 12 weeks |
| 功能 | Driver - Fully Integrated, Control and Power Stage |
| 安装类型 | Surface Mount |
| 应用范围 | General Purpose |
| 电压 - 负载 | 8 V ~ 52 V |
| 供应商设备封装 | 24-SO |
| 封装 | Tube |
| 电流 - 输出 | 1.4A |
| 电机型号 - 步进 | Bipolar |
| 电压 - 电源 | 8 V ~ 52 V |
| 接口 | Parallel |
| 输出配置 | Full H-Bridge, (1) Single |
| 封装/外壳 | 24-SOIC (0.295", 7.50mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 应用 | Bipolar Stepping Motor Driver |
| 外形尺寸 | 15.6 x 7.6 x 2.35mm |
| 身高 | 2.35mm |
| 长度 | 15.6mm |
| 最大工作电源电压 | 52 V |
| 最高工作温度 | +150 °C |
| 最低工作电源电压 | 8 V |
| 最低工作温度 | -40 °C |
| 包装类型 | SO |
| 宽度 | 7.6mm |
| 工作电源电压 | 8 V to 52 V |
| 产品 | Stepper Motor Controllers / Drivers |
| 产品种类 | Motor / Motion / Ignition Controllers & Drivers |
| 工厂包装数量 | 32 |
| 安装风格 | SMD/SMT |
| 封装/外壳 | SO-24 |
| 电源电流 | 1.4 A |
| RoHS | RoHS Compliant |
| Motor Type | :Stepper |
| No. of Outputs | :4 |
| 输出电流 | :3.55A |
| 输出电压 | :52V |
| Driver Case Style | :SOIC |
| No. of Pins | :24 |
| Supply Voltage Min | :8V |
| Supply Voltage Max | :52V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :6228 |
| 设备类型 | :Motor |
| 工作温度范围 | :-40°C to +150°C |
| Output Current Max | :1.4A |
| Supply Voltage Range | :8V to 52V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0025 |
| Tariff No. | 85423300 |
| Current,InputBias | 10μA |
| Current,Input,HighLevel | 10μA |
| Current,Input,LowLevel | -10μA |
| Current,LeakageOutput | 2mA |
| Current,Output | 1.4A |
| Current,Supply | 10mA |
| DriverType | Motor |
| LogicType | Bipolar |
| MountingType | SMD |
| NumberofOutputs | 1 |
| PackageType | SO-24 |
| PrimaryType | Drivers |
| Resistance,On-State | 1.69Ohms |
| Temperature,Operating | -25to125°C |
| ThermalResistance,JunctiontoAmbient | 55°C/W |
| Time,Fall,Turn-Off | 250ns |
| Time,Rise,Turn-On | 250ns |
| Time,Turn-OffDelay | 1000ns |
| Time,Turn-OnDelay | 800ns |
| Voltage,Input | -0.3to7V |
| Voltage,Input,HighLevel | 7V |
| Voltage,Input,LowLevel | -0.3V |
| Voltage,Offset | ±6mV |
| Voltage,Supply | 8-52V |
