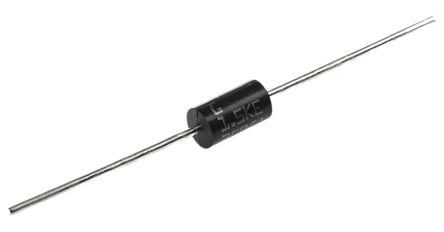

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 2DO-201 |
| 配置 | Single |
| 方向类型 | Bi-Directional |
| 峰值脉冲功率耗散 | 1500 W |
| 最大峰值脉冲电流 | 16 A |
| 最大反向漏泄电流 | 1 uA |
| 最大钳位电压 | 618 V |
| 最大反向防区外电压 | 299 V |
| 最小击穿电压 | 332 V |
| 测试电流 | 1 mA |
| 工作温度 | -65 to 175 °C |
| 安装 | Through Hole |
| 标准包装 | Ammo Pack |
| 供应商封装形式 | DO-201 |
| 标准包装名称 | DO-201 |
| 每个芯片的元件数 | 1 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 175 |
| 最小击穿电压 | 332 |
| 最大反向漏泄电流 | 1 |
| ESD保护 | No |
| 最大钳位电压 | 618 |
| 封装 | Tape and Reel |
| 最低工作温度 | -65 |
| Maximum Reverse Stand-Off Voltage | 299 |
| 最大峰值脉冲电流 | 16 |
| 峰值脉冲功率耗散 | 1500 |
| Operating Junction Temperature | 175 |
| 测试电流 | 1 |
| 引脚数 | 2 |
| 铅形状 | Through Hole |
| 电压 - 钳位（最大） @ IPP | 618V |
| 安装类型 | Through Hole |
| 双向通道数 | 1 |
| 供应商设备封装 | DO-201 |
| 电压 - 击穿（最小值） | 332V |
| 电压 - 反向隔离（标准值） | 299V |
| 应用范围 | General Purpose |
| 电容@频率 | 215pF @ 1MHz |
| 电源线保护 | No |
| 功率 - 峰值脉冲 | 1500W (1.5kW) |
| 类型 | Zener |
| 电流 - 峰值脉冲（ 10/1000μS ） | 16A (8/20µs) |
| 封装/外壳 | DO-201AA, DO-27, Axial |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | 497-12740-1 |
| 极性 | Bidirectional |
| 钳位电压 | 618 V |
| 产品种类 | TVS Diodes - Transient Voltage Suppressors |
| 外形尺寸 | 5.3 (Max) mm W x 9.5 (Max) mm L |
| 工厂包装数量 | 600 |
| 系列 | 1.5KE |
| 端接类型 | Axial |
| 通道 | 1 Channel |
| 工作电压 | 299 V |
| 电容 | 430 pF |
| 击穿电压 | 332 V |
| RoHS | RoHS Compliant |
| 最低工作温度 | - 65 C |
| 封装/外壳 | DO-201 |
| 峰值浪涌电流 | 1 mA |
| 最高工作温度 | + 175 C |
| TVS Polarity | :Bidirectional |
| Reverse Stand-Off Voltage Vrwm | :299V |
| Breakdown Voltage Min | :332V |
| Breakdown Voltage Max | :368V |
| Clamping Voltage Vc Max | :482V |
| Peak Pulse Current Ippm | :16A |
| Diode Case Style | :CB-429 |
| No. of Pins | :2 |
| 功耗 | :5W |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Breakdown Voltage Range | :332V to 368V |
| Breakover Voltage Min | :332V |
| Capacitance Cd @ Vr Typ | :430pF |
| Clamping Voltage @ 8/20µs Max | :618V |
| Current Ir Max | :1µA |
| Current Ir Vbr Measurement Min | :1mA |
| Current Itsm | :200A |
| 二极管配置 | :Bidirectional |
| 二极管类型 | :Bidirectional TVS |
| External Length / Height | :9.52mm |
| Full Power Rating Temperature | :75°C |
| JEDEC Number | :1N6284CA |
| 引线直径 | :1.06mm |
| Peak Pulse Current IPP @ 10/1000µs | :4A |
| Peak Pulse Power | :1.5kW |
| Power Dissipation Ptot Max | :5W |
| Repetitive Reverse Voltage Vrrm Max | :299V |
| Reverse Leakage Current Max | :1µA |
| Stand-off Voltage | :299V |
| Uni / Bi Directional Polarity | :Bidirectional |
| Weight (kg) | 0.002 |
| Tariff No. | 85363010 |
| 案例 | CB429 |
| Semiconductor structure | bidirectional |
| 功率 | 1.5kW |
| Off state voltage max | 299V |
| Gross weight | 1.15 g |
| Breakdown voltage | 332V |
| spg | 600 |
| 漏电流 | 1mA |
| Multiplicity | 1 |
| Diode type | transil |
| Max forward impulse current | 4A |
| Collective package [pcs] | 600 |
| Reverse current | 1µA |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
