Aim-TTi

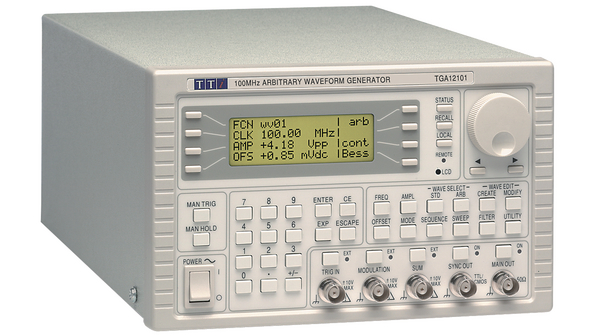

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 校准 | RSCAL |
| 数字振幅和偏移 | Yes |
| 数字频率 | Yes |
| 外形尺寸 | 335 x 212 x 130mm |
| 身高 | 130mm |
| 输入阻抗 | 10 kΩ |
| 接口类型 | GPIB, RS232, USB |
| 内部和外部幅度调制 | Yes |
| 内部线性和对数扫描 | Yes |
| 长度 | 335mm |
| 最大频率范围正弦波 | 40MHz |
| 最大频率范围方波脉冲和任意波形 | 50MHz |
| 最大频率范围三角/锯 | 500kHz |
| 最高工作温度 | +40°C |
| 最小频率范围正弦波 | 0.1MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 MHz |
| 最小频率范围三角/锯 | 0.1MHz |
| 最低工作温度 | +5°C |
| 型号号码 | TGA12101 |
| 输出幅度 | 20V Pk-Pk |
| 输出阻抗 | 50 Ω, 600 Ω |
| 插头类型 | Type C - European Plug, Type G - British 3-pin |
| 时基精度 | ±10ppm |
| 可变后掠 | Yes |
| 重量 | 4.2kg |
| 宽度 | 212mm |
| RoHS指令 | Not Applicable |
| Amplitude sine resolution @ idle | 5 |
| ARB resolution | 0.1 |
| Amplitude sine max @ 50 Ohm | 10 |
| Modulation types | AM |
| Description | Function generator, arbitrary 1x100 MS/s |
| Interfaces | IEEE-488 |
| 显示 | 4 lines x 20 characters |
| Channel analog | 1 |
| ARB function | ARB |
| Instrument functions | Arbitrary wavefrom generator |
| Electrical supply | 110 VAC |
| ARB max | 100 |
| Memory ARB max | 1000 |
| Vertical resolution ARB | 12 |
| Amplitude sine resolution @ 50 Ohm | 2.5 |
| DC offset (peak AC + DC) @ 50 Ohm | ±10 |
| Sine max | 40 |
| Dimensions L x W x H | 335 x 212 x 130 mm |
| Sine resolution | 0.1 |
| Delivery with | Documentation CD |
| Waveforms | Arbitrary |
| Amplitude sine max @ idle | 20 |
