tdk-lambda

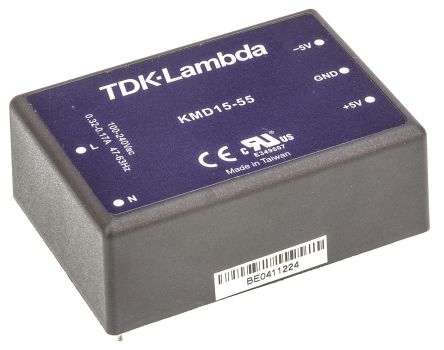

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Regulated |
| 输入电压 | 90 to 264 V |
| 输出电压 | 5|-5 V |
| 最大额定电流 | 0.22 A |
| 最大输出电流 | 1.5|1.5 A |
| 输出数 | 2 |
| 最大输出功率 | 15 W |
| 效率 | 78 % |
| 输入频率 | 47 to 440 Hz |
| 工作温度 | -25 to 70 °C |
| 标准包装 | Bulk |
| 风格 | Medical Encapsulated |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 输入频率 | 47 to 440 |
| Package Height | 23.5 |
| 安装 | Through Hole |
| 效率 | 78 |
| 最小绝缘电压 | 4000VAC |
| Package Length | 45.6 |
| 输入电压 | 90 to 264 |
| 最大输出电流 | 1.5|1.5 |
| Package Width | 64 |
| 输出电压 | 5|-5 |
| PCB | 9 |
| 最大输出功率 | 15 |
| 最低工作温度 | -25 |
| 引脚数 | 9 |
| 负载调整率 | 1% |
| 产品特点 | OCP, OVP |
| 安装类型 | Through Hole |
| 认证 | CE, EN, IEC, UL |
| 功率（瓦特） - 最大 | 15W |
| 线路调整 | 0.5% |
| 电压 - 输出1 | 5V |
| 电压 - 输出2 | -5V |
| 尺寸/尺寸 | 2.52" L x 1.80" W x 0.93" H (64.0mm x 45.6mm x 23.5mm) |
| 重量 | 0.265 lb (120.2g) |
| 功率（瓦特） | 15W |
| 电流 - 输出（最大） | 1.5A, 1.5A |
| 应用范围 | Medical |
| 电源类型 | Switching (Closed Frame) |
| 电压 - 电压 | 90 ~ 264 VAC |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 23.5mm |
| 长度 | 64mm |
| 最高温度 | +70°C |
| 最低气温 | -25°C |
| 平均无故障时间 | 200000 → 400000h |
| 输出电流 | 1.5A |
| 包装类型 | Encapsulated |
| 额定功率 | 15W |
| 纹波和噪声 | ±1 %, 50 mV Pk-Pk |
| 宽度 | 45.6mm |
| 输出电流通道2 | 1.5 A |
| 产品 | Switching Supplies |
| 输出电流通道1 | 1.5 A |
| 外形尺寸 | 2 in L x 1 in W |
| 输出电压通道2点12 V | - 5 V |
| 商用/医用 | Medical |
| 系列 | KM |
| 额定输出功率 | 15 W |
| 输出电压通道1 | 5 V |
| 身高 | 0.4 in |
| 安装风格 | PCB |
| 单位重量 | 4.232875 oz |
| 开放式/封闭式 | Enclosed |
| RoHS | RoHS Compliant |
| Power Supply Output Type | :Fixed |
| Input Voltage VAC | :90V to 264V |
| No. of Outputs | :2 |
| Output Voltage Nom. | :5V, -5V |
| Output Current Max | :1.5A, 1.5A |
| Output Power Max | :15W |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CE, IEC, UL |
| Approvals / Standards | :IEC 60601, UL 60601 |
| 外部深度 | :23.5mm |
| External Length / Height | :64.0mm |
| 外宽 | :45.6mm |
| Hold Up Time | :20ms |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-25°C |
| Output Current - Output 2 | :1.5A |
| Output Ripple Voltage pk-pk | :50mV |
| Output Voltage - Output 2 | :-5V |
| 电源电压 | :264V |
| Supply Voltage Max | :264V |
| Supply Voltage Min | :90V |
| Supply Voltage Typ | :110V AC, 230V AC |
| Weight (kg) | 0.12 |
| Tariff No. | 85044090 |
| Brand/Series | KMSeries |
| 配置 | Enclosed |
| MountingType | PCB,Thru-Hole |
| NumberofOutputs | 2 |
| 操作 | Switching |
| 输出 | 5VDC@1.5A,-5VDC@1.5A |
| Power,Output | 15W |
| PrimaryType | AC-DC |
| SpecialFeatures | SmallSize,Lightweight,HighEfficiency,2-YearsWarranty |
| Voltage,Input | 90-264VAC |
| Voltage,Output | 5VDC,-5VDC |
