TDK-Lambda

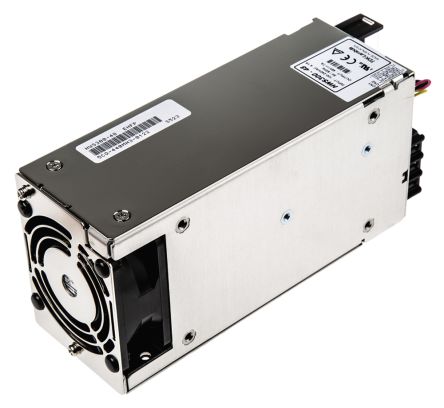

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 输出数 | 1 |
| 风格 | Enclosed |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 输入频率 | 47 to 63 |
| Package Height | 82.04 |
| 安装 | Chassis |
| 效率 | 85(Typ) |
| 最小绝缘电压 | 3000VAC |
| Package Length | 165.1 |
| 最大输出电流 | 7 |
| Package Width | 60.96 |
| 输出电压 | 48 |
| 最大输出功率 | 336 |
| 最低工作温度 | -10 |
| 类型 | Regulated |
| 输入电压 | 85 to 265 |
| 线路调整 | 192mV |
| 安装类型 | Chassis Mount |
| 应用范围 | Commercial |
| 认证 | CE, CSA, EN, UL |
| 功率（瓦特） - 最大 | 336W |
| 电压 - 输出 | 48V |
| 尺寸/尺寸 | 6.50" L x 2.40" W x 3.23" H (165.1mm x 61.0mm x 82.0mm) |
| 效率 | 85% |
| 功率（瓦特） | 300W |
| 负载调整率 | 384mV |
| 标准包装 | 1 |
| 输出 - 1 @电流（最大） | 48 VDC @ 7A |
| 电压 - 电压 | 85 V ~ 265 VAC |
| 工作温度 | -10°C ~ 70°C |
| 电源类型 | Switching (Open Frame) |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 2.4in |
| 输入电压 | 120 → 330 V dc, 85 → 265 V ac |
| 长度 | 6.5in |
| 最高温度 | +70°C |
| 最低气温 | -10°C |
| 输出电流 | 7A |
| 输出电压 | 48V |
| 包装类型 | Enclosed |
| 额定功率 | 336W |
| 纹波和噪声 | 200mV |
| 重量 | 1000g |
| 宽度 | 3.23in |
| 产品 | Switching Supplies |
| 输出电流通道1 | 7 A |
| 外形尺寸 | 7.8 in L x 4 in W |
| 商用/医用 | Commercial |
| 系列 | HWS300 |
| 额定输出功率 | 336 W |
| 输出电压通道1 | 48 V |
| 身高 | 2.05 in |
| 安装风格 | Chassis |
| 单位重量 | 2.094 lbs |
| 开放式/封闭式 | Enclosed |
| RoHS | RoHS Compliant |
| Power Supply Output Type | :Adjustable, Fixed |
| Input Voltage VAC | :85V to 265V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :48V |
| Output Current Max | :7A |
| Output Power Max | :336W |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CE, CSA, EN, UL |
| 外部深度 | :165mm |
| External Length / Height | :82mm |
| 外宽 | :61mm |
| 浪涌电流 | :40A |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-10°C |
| Output Ripple Voltage pk-pk | :350mV |
| Output Voltage Max | :52.8V |
| Output Voltage Min | :38.4V |
| 电源电压 | :265V |
| Supply Voltage Max | :265VAC |
| Supply Voltage Min | :85VAC |
| Supply Voltage Typ | :110V AC, 230V AC |
| Weight (kg) | 1 |
| Tariff No. | 85044090 |
| Brand/Series | HWSSeries |
| 配置 | OpenFrame |
| Current,Rating | 7.00A(Max.) |
| MountingType | Panel |
| NumberofOutputs | 1 |
| 操作 | PFC |
| 输出 | 48VDC@7A |
| Power,Output | 336W |
| PrimaryType | AC-DC |
| Voltage,Input | 85-265VAC |
| Voltage,Output | 48VDC |
