TDK-Lambda Americas

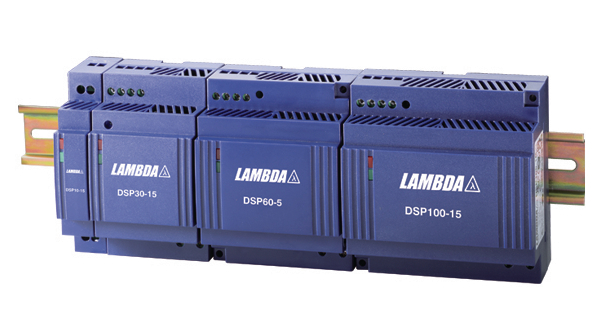

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 输出数 | 1 |
| 风格 | DIN Rail |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 71 |
| Input Frequency | 47 to 63 |
| Package Height | 91 |
| 安装 | DIN Rail |
| 效率 | 80(Typ) |
| 最小绝缘电压 | 3000VAC |
| 输出电压 | 24 |
| 最大输出电流 | 0.42 |
| Package Width | 55.6 |
| Maximum Output Power | 10.1 |
| Package Length | 18 |
| 最低工作温度 | -25 |
| 输入电压 | 90 to 264 |
| 线路调整 | 1% |
| 安装类型 | DIN Rail |
| 应用范围 | Commercial |
| 认证 | CE, EN, UL |
| 功率（瓦特） - 最大 | 10.1W |
| 电压 - 输出 | 24V |
| 尺寸/尺寸 | 2.19" L x 0.71" W x 3.58" H (55.6mm x 18.0mm x 90.9mm) |
| 效率 | 80% |
| 功率（瓦特） | 10W |
| 负载调整率 | 1% |
| 标准包装 | 1 |
| 输出 - 1 @电流（最大） | 24 VDC @ 420mA |
| 电压 - 电压 | 90 ~ 264 VAC |
| 工作温度 | -25°C ~ 71°C |
| 类型 | Standard Product |
| 电源类型 | Switching (Closed Frame) |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品 | Switching Supplies |
| 输出电流通道1 | 0.42 A |
| 外形尺寸 | 0.71 in L x 3.58 in W |
| 商用/医用 | Commercial |
| 系列 | DSP |
| 额定输出功率 | 10 W |
| 输出电压通道1 | 24 V |
| 单位重量 | 2.116438 oz |
| 安装风格 | DIN Rail |
| 输入电压 | 90 VAC to 264 VAC |
| 开放式/封闭式 | Enclosed |
| RoHS | RoHS Compliant |
| Power Supply Output Type | :Fixed |
| Input Voltage VAC | :90V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :24V |
| Output Current Max | :420mA |
| Output Power Max | :10.1W |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CE, EN, UL |
| 外部深度 | :55.6mm |
| External Length / Height | :91mm |
| 外宽 | :18mm |
| 输入频率 | :63Hz |
| 浪涌电流 | :30A |
| Operating Temperature Max | :71°C |
| Operating Temperature Min | :-25°C |
| Output Ripple Voltage pk-pk | :50mV |
| 重量 | :60g |
| Weight (kg) | 0.06 |
| Tariff No. | 85044090 |
| Brand/Series | DSPSeries |
| 配置 | Enclosed |
| MountingType | DINRail/Panel |
| NumberofOutputs | 1 |
| 操作 | PFC |
| 输出 | 24VDC@0.42A |
| Power,Output | 10.1W |
| PrimaryType | AC-DC |
| SpecialFeatures | LowProfile,2-YearsWarranty |
| Voltage,Input | 90-264VAC |
| Voltage,Output | 24VDC |
