toshiba

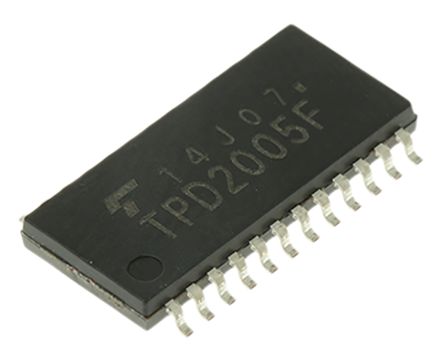

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 24SSOP |
| 类型 | High Side |
| 输出数 | 8 |
| 工作电源电压范围 | 8 to 40 V |
| 输入电压 | -0.5 to 7 V |
| 电源电流 | 5(Max) mA |
| 最大功率耗散 | 1200 mW |
| 开关导通电阻 | 0.9 Ohm |
| 工作温度 | -40 to 85 °C |
| 安装 | Surface Mount |
| 标准包装 | Tape & Reel |
| 产品种类 | Power Switch ICs - Power Distribution |
| RoHS | RoHS Compliant |
| 封装 | Tube |
| 工厂包装数量 | 500 |
| 外形尺寸 | 13.5 x 6 x 1.4mm |
| 身高 | 1.4mm |
| 长度 | 13.5mm |
| 最高工作温度 | +85 °C |
| 最低工作温度 | -40 °C |
| 安装类型 | Surface Mount |
| 包装类型 | SSOP-24 |
| 引脚数 | 24 |
| 额定功率 | 1.2W |
| 电源开关类型 | Low Side Switch |
| 电压 | 8 → 40V |
| 宽度 | 6mm |
| RoHS指令 | Compliant |
| 设备类型 | :High Side |
| Module Configuration | :Low Side |
| 峰值输出电流 | :3A |
| Supply Voltage Min | :8V |
| Supply Voltage Max | :40V |
| Driver Case Style | :SSOP |
| No. of Pins | :24 |
| Input Delay | :11µs |
| Output Delay | :4µs |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 5 - 48 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :2005 |
| No. of Outputs | :8 |
| 工作温度范围 | :-40°C to +85°C |
| 输出电流 | :1A |
| 输出电阻 | :0.9ohm |
| 输出电压 | :45V |
| 功耗 | :800mW |
| Supply Voltage Range | :8V to 40V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0029 |
| Tariff No. | 85423190 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
