Amphenol Tuchel

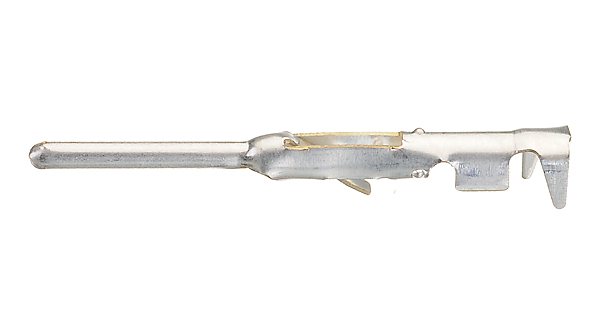

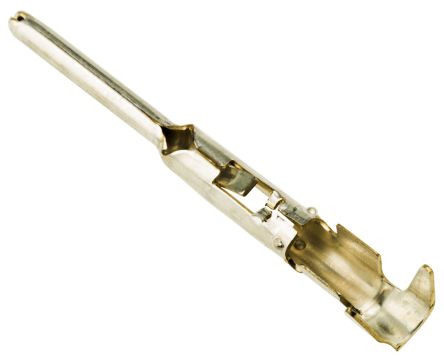

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Heavy Duty Power Connectors |
| RoHS | RoHS Compliant |
| 系列 | C146 |
| 产品类型 | Contacts |
| 位置/触点数 | 1 |
| 端接类型 | Crimp |
| 触点材料 | Brass |
| 触点电镀 | Silver |
| 插入/联系人性别 | Male |
| 工厂包装数量 | 1 |
| 线规范围 | 20-16 |
| 线规 | 16-20 AWG |
| 触点表面涂层 | Silver |
| 封装 | Bulk |
| 标准包装 | 1 |
| 针脚或插座 | Pin |
| 类型 | Stamped |
| 接触端子 | Crimp |
| 尺寸 | 1.6mm |
| RoHS指令 | Lead free / RoHS Compliant |
| 性别 | Male |
| 最大接触电阻 | 5mΩ |
| 安装类型 | Cable Mount |
| 端接方式 | Crimp |
| 线径规格 | 20 → 16 AWG |
| 适用于 | :ecomate Circular Connectors |
| 联系人性别 | :Pin |
| Wire Size AWG Min | :20AWG |
| Wire Size AWG Max | :16AWG |
| Weight (kg) | 0.000001 |
| Tariff No. | 85366910 |
| 连接器类型 | :Contact, Crimp |
| Connector Body Material | :- |
| Connector Mounting | :- |
| Connector Shell Size | :- |
| 插入安排 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Cable Diameter Max | :2.8mm |
| Cable Diameter Min | :1.8mm |
| 颜色 | :Silver |
| External Diameter | :1.6mm |
| Wire Area Size Max | :1.5mm² |
| Wire Area Size Min | :0.5mm² |
| Wire Area Size Power Contact Max | :1.5mm² |
| Wire Area Size Power Contact Min | :0.5mm² |
| Weight (g): | 40.00000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
