Amphenol Sine Systems Corp

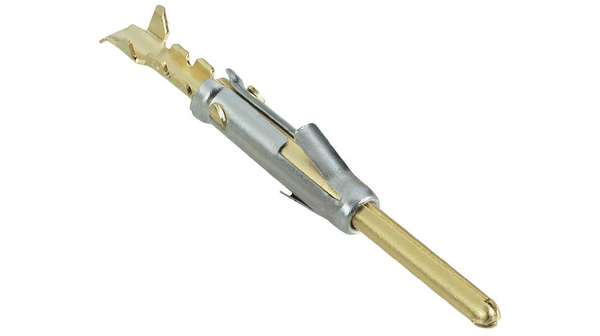

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线规 | 28-30 AWG |
| 触点表面涂层 | Gold |
| 封装 | Tape & Reel (TR) |
| 标准包装 | 3,000 |
| 针脚或插座 | Pin |
| Contact Finish Thickness | Flash |
| 类型 | Stamped |
| 接触端子 | Crimp |
| 尺寸 | 20 |
| 工厂包装数量 | 3000 |
| 触点尺寸 | 20 |
| 触点电镀 | Gold Flash |
| 端接类型 | Crimp |
| 联系人性别 | Male |
| 商品名 | RT360 |
| 触点类型 | Stamped and Formed |
| 触点材料 | Copper Alloy |
| RoHS | RoHS Compliant |
| 系列 | :RT360 |
| 适用于 | :RT Series Industrial Circular Connectors |
| Wire Size AWG Min | :30AWG |
| Wire Size AWG Max | :28AWG |
| 额定电流 | :5A |
| Weight (kg) | 2.5 |
| Tariff No. | 85369010 |
| Electrical mounting | crimped |
| Mechanical mounting | for cable |
| Contact size | 20 |
| Quantity in package | 3000pcs. |
| 额定电流 | 5A |
| Multiplicity | 1 |
| Connector type | male |
| 连接器 | contact |
| Gross weight | 2.5 kg |
| Package type | tape |
| Connectors application | for RT360 connectors |
| 接触镀层 | gold plated |
| Connector series | RT360 |
| Wire size | 28...30AWG |
| Collective package [rol] | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
