amphenol

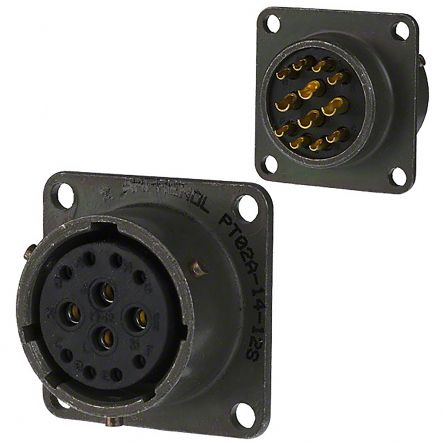

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Miniature Cylindrical |
| 性别 | PL |
| 端接方式 | Solder |
| 安装 | Cable Mount |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 外壳类型 | straight plug |
| 插入旋转 | normal (no rotation) position |
| 插入安排 | 8-3 |
| 外壳尺寸 | 8 |
| 触点类型 | pin contacts |
| Service Class | general duty back shell |
| 应力消除选项 | strain relief clamp |
| 安装类型 | Free Hanging (In-Line) |
| 电压 - 额定 | 600VAC |
| 端子 | Solder Cup |
| 外壳尺寸 - 插件 | 8-3 |
| 连接器类型 | Plug, Male Pins |
| 外壳材料，表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 触点表面涂层 | Gold |
| 封装 | Bulk |
| 工作温度 | -55°C ~ 125°C |
| 位置数 | 3 |
| 紧固型 | Bayonet Lock |
| 额定电流 | 7.5A |
| 其他名称 | PT06A83PSR |
| 产品特点 | Strain Relief |
| 定位 | N (Normal) |
| RoHS指令 | Lead free / RoHS non-compliant |
| RoHS | No |
| 安装方式 | Straight |
| 产品种类 | Circular MIL Spec Connector |
| 外壳材质 | Aluminum Alloy |
| 线规 | 20-24 |
| 匹配样式 | Bayonet |
| MIL类型 | MIL-DTL-26482 |
| 额定电压 | 600 V |
| 端接类型 | Solder |
| 联系人性别 | Pin (Male) |
| 安装风格 | Wire |
| 位置/触点数 | 3 |
| 触点电镀 | Gold |
| 系列 | PT |
| 产品类型 | Plugs |
| 外壳电镀 | Chromate over Cadmium, Olive Drab |
| Connector Body Material | :Aluminium |
| Connector Mounting | :Cable |
| Connector Shell Size | :8 |
| Weight (kg) | 0.023 |
| Tariff No. | 85369010 |
| 机构认证 | UL Recognized |
| Angle | Straight |
| 应用 | Commercial |
| Brand/Series | PT Series |
| 等级 | A |
| 联系配置 | 3#20 |
| 触点尺寸 | 20 AWG |
| Current, Rating | 7.5 A |
| Finish, Housing | Olive Drab Cadmium |
| 房屋类型 | Metal |
| Material, Dielectric | Neoprene |
| Material, Housing | Aluminum |
| 交配型 | Bayonet |
| 触点数 | 3 |
| Primary Type | 26482 Commercial |
| 特殊功能 | 5 Key/Keyway Polarization |
| 应力消除 | External |
| Voltage, Rating | 600 VAC |
| Wire, AWG | 20 |
