Amphenol

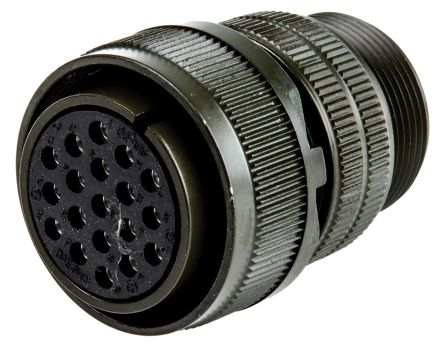

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 身体上的取向 | Straight |
| 联系人性别 | Female |
| 触点材料 | Copper Alloy |
| 触点电镀 | Silver |
| 性别 | Male |
| 最高工作温度 | +125°C |
| 军用标准 | MIL-DTL-5015 |
| 最低工作温度 | -55°C |
| 安装类型 | Cable Mount |
| 触点数 | 19 |
| 外壳电镀 | Zinc Cobalt |
| 外壳尺寸 | 22 |
| 端接方式 | Solder |
| 额定电压 | 500 V ac, 700 V dc |
| 连接器类型 | :Circular Military |
| 系列 | :MIL-DTL-5015 |
| Connector Body Material | :Aluminium |
| Connector Mounting | :Cable |
| Connector Shell Size | :22 |
| 插入安排 | :22-14 |
| No. of Contacts | :19 |
| 接触端子 | :Solder |
| SVHC | :Cadmium (20-Jun-2013) |
| Cable Diameter Max | :1.4mm |
| Cable Diameter Min | :0.8mm |
| 颜色 | :Olive |
| Connector Insert Type | :22-14 |
| Coupling Diameter | :40.34mm |
| 额定电流 | :13A |
| Dielectric Strength VAC | :2800V |
| IP / NEMA Rating | :IP66 |
| 长度 | :50.11mm |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Voltage Rating V AC | :700V |
| Voltage Rating V DC | :700V |
| Wire Size AWG Max | :22AWG |
| Wire Size AWG Min | :16AWG |
| Weight (kg) | 0.096 |
| Tariff No. | 85369010 |
