Amphenol

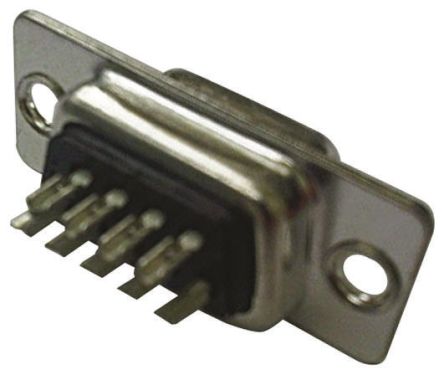

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 身体上的取向 | Straight |
| 触点材料 | Phosphor Bronze |
| 触点电镀 | Gold over Nickel |
| 额定电流 | 5A |
| 深度 | 16.73mm |
| 外形尺寸 | 53.04 x 12.55 x 16.73mm |
| 性别 | Female |
| 外壳材料 | Steel |
| 长度 | 53.04mm |
| 最高工作温度 | +85°C |
| 最低工作温度 | -40°C |
| 安装类型 | Panel Mount |
| 触点数 | 25 |
| 间距 | 2.76mm |
| 宽度 | 12.55mm |
| 系列 | :- |
| No. of Contacts | :25 |
| D Sub Shell Size | :DB |
| Connector Body Material | :Metal |
| 电容 | :470pF |
| 接触端子 | :Solder |
| Weight (kg) | 0.011 |
| Tariff No. | 85366990 |
| Angle | Straight |
| Brand/Series | FCE17 |
| Current, Rating | 5 A |
| Finish, Housing | Tin |
| 可燃性等级 | UL 94-V0 |
| Material, Contact | Phosphor Bronze |
| Material, Dielectric | Thermoplastic |
| Material, Housing | Steel |
| 行数 | 2 |
| Primary Type | D-Subminiature |
| 外壳尺寸 | B |
| 特殊功能 | Filtered |
| 端子 | Solder |
| 类型 | Cable Socket |
| Wire, AWG | 20 |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
