Amphenol Tuchel

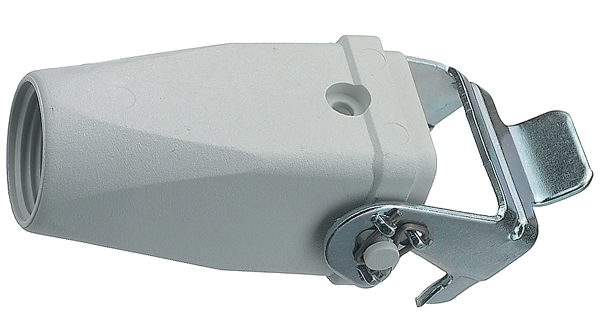

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 螺纹尺寸 | PG11 |
| 风格 | Bottom Entry |
| 防护等级 | IP65 - Dust Tight, Water Resistant |
| 产品特点 | Cable to Cable |
| 外壳材料 | Polyamide (PA), Nylon |
| 连接器类型 | Hood - Coupling |
| 锁位置 | Central Locking Clip on Base Bottom |
| 尺寸/尺寸 | 1.043" L x 1.043" W x 1.970" H (26.50mm x 26.50mm x 50.00mm) |
| 封装 | Bulk |
| 标准包装 | 100 |
| 工作温度 | -40°C ~ 100°C |
| 其他名称 | C14610G0038044 |
| 尺寸 | A3/4 |
| 零件号别名 | 10G003 4 804 C146 |
| 产品种类 | Heavy Duty Power Connectors |
| 产品类型 | Hoods |
| RoHS | RoHS Compliant |
| 螺纹尺寸 | PG11 |
| 连接器类型 | Hood - Coupling |
| 系列 | heavy|mate®, C146 A |
| 样式 | Bottom Entry |
| 操作温度 | -40°C ~ 100°C |
| 特性 | Cable to Cable |
| 尺寸 | A3/4 |
| 大小/尺寸 | 1.043" L x 1.043" W x 1.970" H (26.50mm x 26.50mm x 50.00mm) |
| 锁定位置 | Central Locking Clip on Base Bottom |
| 侵入保护 | IP65 - Dust Tight, Water Resistant |
| 外壳材料 | Polyamide (PA), Nylon |
| 螺纹 | PG11 |
| 额定电流 | 10 A |
| 额定电压 | 250 |
| 测试电压 | 2.8 |
| Cross-section | 2.5 mm² |
| Termination type | Screw Connection |
| 系列 | C 146 A |
| Temperature range | -40...+100 °C |
| Protection rating | IP 65 |
| Contact material | silver-plated |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
