Amphenol

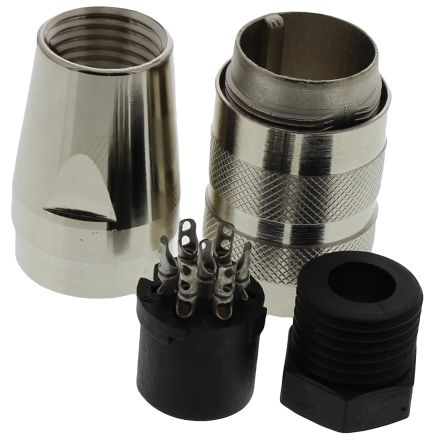

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 身体上的取向 | Straight |
| 触点电镀 | Silver |
| 额定电流 | 5A |
| 性别 | Female |
| 最高工作温度 | +100°C |
| 最低工作温度 | -40°C |
| 安装类型 | Cable Mount |
| 触点数 | 7 |
| 端接方式 | Solder |
| 额定电压 | 300 V ac/dc |
| 连接器类型 | :Circular Industrial |
| 系列 | :C 091 D |
| Connector Body Material | :Metal |
| 联系人性别 | :Socket |
| Connector Mounting | :Cable |
| Connector Shell Size | :- |
| 插入安排 | :- |
| No. of Contacts | :7 |
| 接触端子 | :Solder |
| 触点材料 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| 接触电阻 | :5mohm |
| IP / NEMA Rating | :IP67 |
| 绝缘电阻 | :1000Mohm |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Voltage Rating V AC | :300V |
| Wire Area Size | :0.5mm² |
| 工作电压 | :250V |
| Weight (kg) | 0.03902 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
