amphenol-sine systems

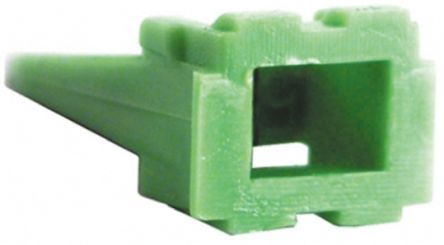

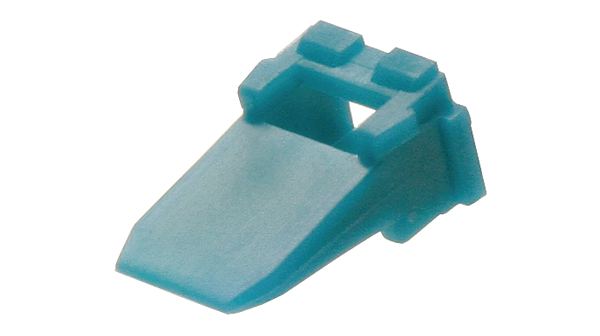

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Wedge |
| 家庭 | AW |
| 标准包装 | Bulk |
| 产品厚度 | 14.8 |
| 产品长度 | 9.5 |
| 欧盟RoHS指令 | Supplier Unconfirmed |
| 附件类型 | Wedge for Pins |
| 位置数 | 4 |
| 配用/相关产品 | AT Series™ |
| 其他名称 | 889-1040 |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 14.8mm |
| 宽度 | 9.5mm |
| 外壳材料 | Thermoplastic |
| 产品 | Wedges |
| 产品种类 | Automotive Connectors |
| 工作温度范围 | - 55 C to + 125 C |
| 颜色 | Green |
| 系列 | AT |
| 封装 | Reel |
| 性别 | Female |
| 触点类型 | Receptacle |
| 零件号别名 | 14R5618 427-0029 |
| RoHS | RoHS Compliant |
| 产品长度（mm ） | 9.5 mm |
| 产品厚度（毫米） | 14.8 mm |
| 身体上的取向 | Straight |
| 产品直径（mm ） | Not Required mm |
| No. of Contacts | :4 |
| 联系人性别 | :- |
| Connector Mounting | :Cable |
| Connector Shell Size | :- |
| 触点材料 | :- |
| 触点电镀 | :- |
| 连接器类型 | :Dust Cover |
| MSL | :- |
| 材质 | :Silicone Elastomer |
| Weight (kg) | 0.003 |
| Tariff No. | 39269097 |
| Brand/Series | AT Series |
| 触点数 | 4 |
| Primary Type | Industrial |
| Multiplicity | 1 |
| Connector type | male |
| Gross weight | 0.36 g |
| Connector accessories type | secondary lock |
| Connector series | AT |
| 针数 | 4 |
| Collective package [pcs] | 600 |
| spg | 600 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
