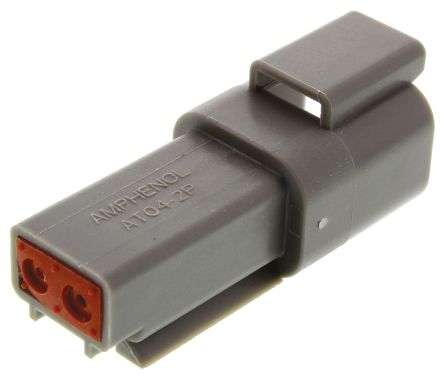

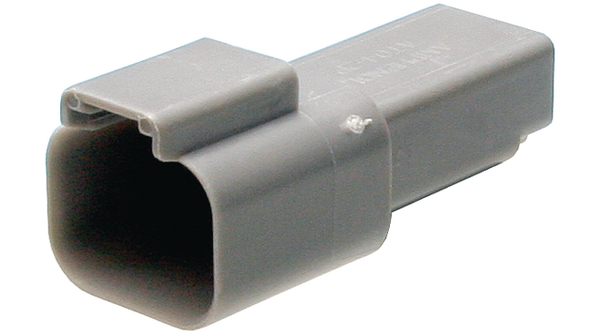

amphenol-sine systems
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Power |
| 性别 | RCP |
| 安装 | Cable Mount |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| Wire Size | 14-20 |
| 产品长度 | 17.05 |
| 欧盟RoHS指令 | Compliant |
| 产品厚度 | 43.38 |
| 产品高度 | 17 |
| 外壳材料 | Thermoplastic |
| 行数 | 1 |
| 外壳颜色 | Gray |
| 触点数 | 2 |
| 最大额定电流 | 13 |
| 封装 | Bulk |
| 安装类型 | Free Hanging (In-Line) |
| 颜色 | Gray |
| 连接器类型 | Receptacle |
| 位置数 | 2 |
| 注 | Contacts Not Provided |
| 紧固型 | Latch Holder |
| 触点类型 | Male Pin |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 43.38mm |
| 身高 | 17mm |
| 宽度 | 17.05mm |
| 安装风格 | Wire |
| 产品 | Connectors |
| 产品种类 | Automotive Connectors |
| 工作温度范围 | - 55 C to + 125 C |
| 系列 | AT |
| 零件号别名 | 14R5586 427-0001 |
| RoHS | RoHS Compliant |
| 端口数 | 1 Port |
| 端子数 | 2 |
| 产品长度（mm ） | 17.05 mm |
| 产品厚度（毫米） | 43.38 mm |
| 产品高度（mm ） | 17 mm |
| No. of Positions | :2 |
| 额定电流 | :13A |
| 可燃性等级 | :UL94V-0 |
| MSL | :- |
| 材质 | :Thermoplastic |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| 耐压 | :1500V |
| Weight (kg) | 0.002 |
| Tariff No. | 85366990 |
| Brand/Series | AT Series |
| Primary Type | Industrial |
| 锁定系统 | lock |
| Mechanical mounting | for cable |
| Multiplicity | 1 |
| 颜色 | grey |
| Connector type | male |
| 针数 | 2 |
| 连接器 | plug |
| Gross weight | 4.5 g |
| Operating temperature | -55...125°C |
| Connectors application | for size 16 terminals |
| Connector variant | w/o terminals |
| Connector series | AT |
| Collective package [pcs] | 1000 |
| spg | 1000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
