Amphenol

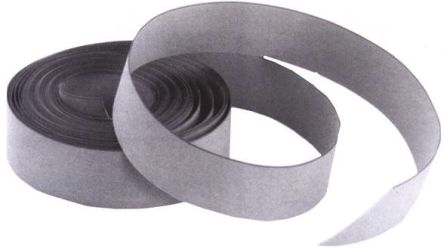

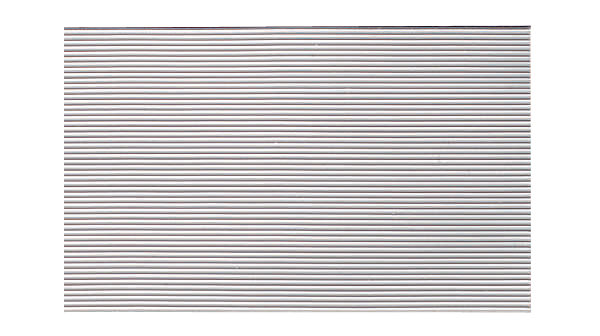

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 美国线规 | 30 |
| 电缆形状 | Ribbon |
| 电容 | 82 pF/m |
| 特性阻抗 | 70 Ω |
| 导体绞合线类型 | Stranded |
| 核心股 | 7/40 |
| 股数 | 7 |
| 方法数目 | 68 |
| 间距 | 0.635mm |
| 卷长 | 30m |
| 屏蔽/非屏蔽 | Unscreened |
| 护套颜色 | Grey |
| 股尺寸 | 40 AWG |
| 额定电压 | 150 V |
| 宽度 | 43.18 mm |
| 封装 | Reel |
| 商品名 | Spectra-Zip |
| 工作温度范围 | -20C to 105C |
| 颜色 | Gray/Black Edge |
| 额定电流（最大值） | 0.8 A |
| 类型 | Flat Cable |
| 产品厚度（毫米） | 43.18 mm |
| 额定电压最大 | 150V |
| 电缆直径 | Not Required mm |
| 电缆间距（mm） | 0.64 |
| 导体材料 | Tinned Copper |
| 导线数 | 68 |
| 线径规格 | 30 AWG |
| No. of Conductors | :68 |
| 节距 | :0.635mm |
| Conductor Size AWG | :30AWG |
| Conductor Area CSA | :0.072mm² |
| 护套材质 | :PVC (Polyvinyl Chloride) |
| Jacket Colour | :Grey |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :UL |
| Cable UL Style Number | :UL2651 |
| 颜色 | :Grey |
| Conductor Make-up | :7/38AWG |
| 额定电流 | :0.8A |
| 阻抗 | :70ohm |
| 电感 | :0.46µH/m |
| 绝缘电阻 | :10000Mohm |
| No. of Max Strands x Strand Size | :7 x 0.1mm |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-20°C |
| Weight (kg) | 0.073 |
| Tariff No. | 85444995 |
| Wire type | ribbon |
| 外形尺寸 | see |
| Package contents | 30,5m |
| 额定电压 | 150V |
| Ribbon cable pitch | 0.635mm |
| A dimension | 43.18mm |
| B dimension | 42.55mm |
| Gross weight | 2.19 kg |
| Operating temperature | max. 105°C |
| Insulation colour | grey |
| Core structure | stranded |
| Outer insulation material | PVC |
| Multiplicity | 1 |
| Number of cores | 68 |
| Core diameter | 30AWG |
| Core type | Cu, tinned |
| Collective package [rol] | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
