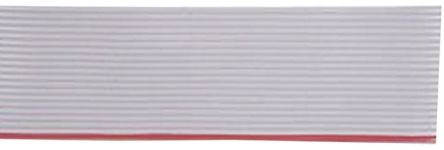

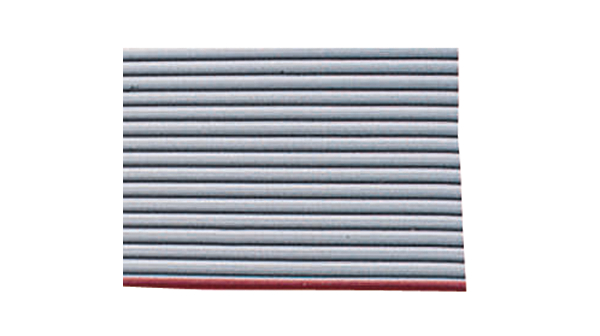

Amphenol Spectra-Strip
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Flat Cables |
| RoHS | RoHS Compliant |
| 产品 | Ribbon Cable |
| 导线数 | 25 |
| 导线间距 | 1.27 mm |
| 搁浅 | 7 x 36 |
| 线规 - AWG | 28 |
| 额定电压 | 300 V |
| 屏蔽 | Unshielded |
| 导体材料 | Tinned Copper |
| 护套材质 | Polyvinyl Chloride (PVC) |
| 颜色 | Gray |
| 电缆类型 | Ribbon Cable, Planar |
| 绝缘材料 | Polyvinyl Chloride (PVC) |
| 额定电流 | 1 A |
| 长度 | 100 ft |
| 封装 | Spool |
| 工厂包装数量 | 100 |
| 零件号别名 | 608-7125 78K6416 |
| 卷长 | 30m |
| 屏蔽/非屏蔽 | Unscreened |
| RoHS指令 | Compliant |
| 商品名 | Spectra-Zip |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.48m |
| No. of Conductors | :25 |
| 节距 | :1.27mm |
| Conductor Size AWG | :28AWG |
| Conductor Area CSA | :0.072mm² |
| Jacket Colour | :Grey |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, UL |
| Approval Category | :Style 2651 |
| Cable UL Style Number | :UL2651 |
| 电容 | :45.9pF/m |
| 颜色 | :Grey |
| Conductor Make-up | :7/36AWG |
| 阻抗 | :105ohm |
| 电感 | :0.59µH/m |
| 绝缘电阻 | :10000Mohm |
| No. of Max Strands x Strand Size | :7 x 0.127mm |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-20°C |
| Weight (kg) | 0.052 |
| Tariff No. | 85444995 |
| 应用 | For general-purpose interconnection in electronic products from calculators and automobiles to computers and switching networks |
| Material, Conductor | Tinned Copper |
| Material, Insulation | Polyvinylchloride |
| 标准 | UL, CSA AWM I A, FT-1 |
| Temperature, Rating | +105 °C |
| Wire, AWG | 28 |
