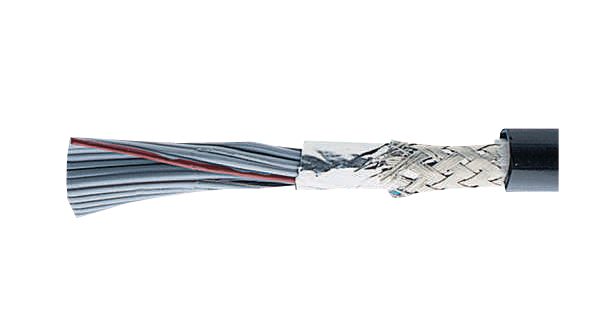

Amphenol Spectra-Strip
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Flat Cables |
| RoHS | RoHS Compliant |
| 产品 | Round to Flat Cable |
| 导线数 | 26 |
| 导线间距 | 1.27 mm |
| 搁浅 | 7 x 36 |
| 线规 - AWG | 28 |
| 额定电压 | 300 V |
| 屏蔽 | Shielded |
| 导体材料 | Tinned Copper |
| 护套材质 | Polyvinyl Chloride (PVC) |
| 颜色 | Gray |
| 工作温度范围 | - 20 C to + 105 C |
| 电缆类型 | Round Conductor Flat Cable |
| 绝缘材料 | Polyvinyl Chloride (PVC) |
| 长度 | 100 ft |
| 封装 | Spool |
| 工厂包装数量 | 100 |
| 零件号别名 | 608-2885 78K6404 |
| RoHS指令 | Compliant |
| 商品名 | Round 'n' Flat |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| No. of Conductors | :26 |
| 节距 | :1.27mm |
| Conductor Size AWG | :28AWG |
| Conductor Area CSA | :0.072mm² |
| Jacket Colour | :Grey |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, UL |
| Cable UL Style Number | :UL2651/20381 |
| 电容 | :78.7pF/m |
| 颜色 | :Grey |
| Conductor Make-up | :7/36AWG |
| 额定电流 | :1A |
| External Diameter | :9.1mm |
| 阻抗 | :75ohm |
| 电感 | :0.49µH/m |
| 绝缘电阻 | :10000Mohm |
| No. of Max Strands x Strand Size | :7 x 0.127mm |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-20°C |
| Screen Type Primary | :Aluminium/mylar |
| Screen Type, Secondary | :Tinned copper braid |
| Secondary Insulation Colour | :Black |
| Secondary Insulation Material | :PVC |
| Weight (kg) | 4.47 |
| Tariff No. | 85444995 |
| 应用 | For use in protecting signals from EMI interference |
| 颜色代码 | Gray with Red Edge |
| Color, Jacket | Black |
| Diameter, Nominal | 0.360 in. |
| Diameter, Outer, Nominal | 0.36 " |
| Material, Conductor | Tinned Copper |
| Material, Insulation | Polyvinylchloride |
| Material, Jacket | Polyvinylchloride |
| Material, Shield | Aluminum/Polyester Tape, Tinned Copper |
| 标准 | UL CL2, CSA AWM I/II A, FT-1 |
| Temperature, Operating | -20 to +105 °C |
| Temperature, Rating | -20 to +105 °C |
| Thickness, Jacket | 0.03 in. |
| Voltage, Rating | 300 V |
| Width, Nominal | 1.3 in. |
| 线径规格 | 28 AWG |
| Wire, AWG | 28 |
| Shield structure | Al-PET foil, tinned copper braid |
| Wire type | ribbon |
| 外形尺寸 | see |
| Package contents | 30,5m |
| 额定电压 | 300V |
| Ribbon cable pitch | 1.27mm |
| A dimension | 33.02mm |
| Gross weight | 3.65 kg |
| Operating temperature | -20...105°C |
| Insulation colour | grey |
| Core structure | stranded |
| Outer insulation material | PVC |
| Multiplicity | 1 |
| Number of cores | 26 |
| Wire cross-section shape | round |
| Core diameter | 28AWG |
| Core type | Cu, tinned |
| B dimension | 31.75mm |
