Amphenol Spectra-Strip

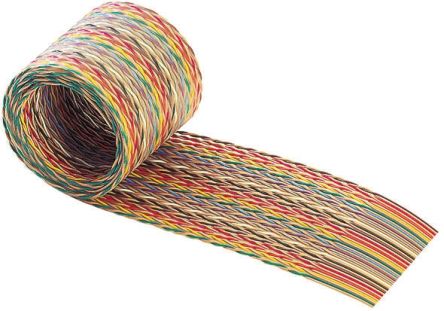

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Flat Cables |
| RoHS | RoHS Compliant |
| 产品 | Twisted Cable |
| 导线数 | 26 |
| 导线间距 | 2.54 mm |
| 搁浅 | 7 x 36 |
| 线规 - AWG | 28 |
| 额定电压 | 300 V |
| 屏蔽 | Unshielded |
| 导体材料 | Tinned Copper |
| 护套材质 | Polyvinyl Chloride (PVC) |
| 颜色 | Multicolor |
| 工作温度范围 | + 80 C to + 105 C |
| 电缆类型 | Twist N Flat Cable |
| 绝缘材料 | Polyvinyl Chloride (PVC) |
| 额定电流 | 1 A |
| 长度 | 100 ft |
| 封装 | Spool |
| 工厂包装数量 | 100 |
| 零件号别名 | 608-7326 78K6393 |
| 美国线规 | 28 |
| 电缆形状 | Twisted Pair |
| 电容 | 49.2 pF/m |
| 特性阻抗 | 100 Ω |
| 导体绞合线类型 | Stranded |
| 核心股 | 7/36 |
| 对数 | 13 |
| 股数 | 7 |
| 方法数目 | 26 |
| 间距 | 1.27mm |
| 卷长 | 30m |
| 屏蔽/非屏蔽 | Unscreened |
| 护套颜色 | Clear |
| 股尺寸 | 36 |
| 宽度 | 33.68 mm |
| RoHS指令 | Compliant |
| 商品名 | Twist 'n' Flat |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.48m |
| No. of Conductors | :26 |
| 节距 | :1.27mm |
| Conductor Size AWG | :28AWG |
| Conductor Area CSA | :0.072mm² |
| Jacket Colour | :Multiple |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :UL |
| Cable UL Style Number | :UL2697 |
| 颜色 | :10 Colour Repeat |
| Conductor Make-up | :7/36AWG |
| 阻抗 | :100ohm |
| 绝缘电阻 | :10000ohm |
| No. of Max Strands x Strand Size | :7 x 0.127mm |
| Operating Temperature Max | :105°C |
| Weight (kg) | 0.057 |
| Tariff No. | 85444995 |
| Operating Temperature Min | :-20°C |
| Wire type | ribbon |
| 外形尺寸 | see |
| Package contents | 30,5m |
| 额定电压 | 300V |
| Ribbon cable pitch | 1.27mm |
| Core marking | colours with colour repetition |
| Operating temperature | max. 80°C |
| A dimension | 33.68mm |
| B dimension | 31.75mm |
| Gross weight | 1.9 kg |
| Cable features | twisted pair conductors |
| Core structure | stranded |
| Outer insulation material | PVC |
| Multiplicity | 1 |
| Number of cores | 26 |
| Core diameter | 28AWG |
| Core type | Cu, tinned |
| Collective package [rol] | 9 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
