TE Connectivity

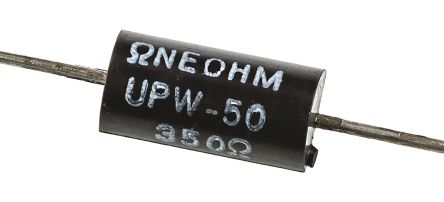

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 直径 | 6.35mm |
| 外形尺寸 | 6.35 Dia. x 12.7mm |
| 长度 | 12.7mm |
| 最高工作温度 | +145°C |
| 最大温度系数 | +3ppm/°C |
| 最低工作温度 | -55°C |
| 最低温度系数 | -3ppm/°C |
| 额定功率 | 0.5W |
| 电阻 | 350Ω |
| 技术 | Wire Wound |
| 温度系数 | ±3ppm/°C |
| 端接类型 | Wire Lead |
| 容差 | ±0.1% |
| 表壳直径 | 6.35 mm |
| 产品 | Power Resistors Wirewound Molded |
| 工作温度范围 | - 55 C to + 85 C |
| 表壳长度 | 12.7 mm |
| 零件号别名 | 1-1624323-2 |
| 标准包装 | 100 |
| 产品范围 | :TE CONNECTIVITY - UPW Series |
| 电阻公差 | :± 0.1% |
| Resistor Case Style | :Axial Leaded |
| Resistor Element Material | :Wirewound |
| 额定电压 | :400V |
| 主体直径 | :6.35mm |
| 机身长度 | :12.7mm |
| 引线直径 | :0.64mm |
| 引线长度 | :25mm |
| No. of Pins | :2 |
| Operating Temperature Max | :145°C |
| Operating Temperature Min | :-55°C |
| Resistor Mounting | :Through Hole |
| 系列 | :UPW |
| Weight (kg) | 0.0015 |
| Tariff No. | 85332100 |
| Brand/Series | UPWSeries |
| Material,Element | Wirewound |
| Power,Rating | 0.5W |
| 端子 | Axial |
| TycoPartNumber | 1-1624323-2 |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
