TE Connectivity / Holsworthy

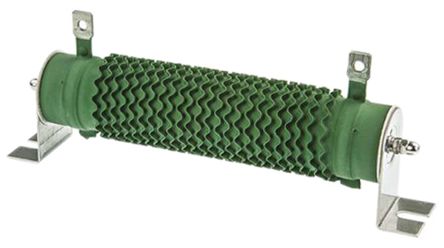

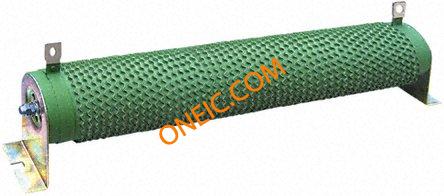

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 最高工作温度 | +255°C |
| 最大温度系数 | +440ppm/°C |
| 最低工作温度 | -25°C |
| 最低温度系数 | -440ppm/°C |
| 额定功率 | 200W |
| 电阻 | 2.2Ω |
| 技术 | Wire Wound |
| 温度系数 | ±440ppm/°C |
| 端接类型 | Solder Lug |
| 容差 | ±5% |
| 表壳直径 | 40 mm |
| 产品 | Power Resistors Wirewound Lug Termination |
| 表壳宽度 | 40 mm |
| 工作温度范围 | - 25 C to + 225 C |
| 系列 | TE |
| 表壳长度 | 195 mm |
| 表壳厚度 | 81 mm |
| 零件号别名 | 1879447-5 |
| 类型 | High Power Wirewound Resistors |
| 产品范围 | :TE CONNECTIVITY - TE Series |
| 电阻公差 | :± 5% |
| Resistor Terminals | :Solder Lug |
| Resistor Element Material | :Wirewound |
| 主体直径 | :40mm |
| 机身长度 | :195mm |
| 外部深度 | :40mm |
| External Length / Height | :81mm |
| 外宽 | :239mm |
| No. of Pins | :2 |
| Operating Temperature Max | :225°C |
| Operating Temperature Min | :-25°C |
| Resistor Mounting | :Panel |
| Weight (kg) | 0.52 |
| Tariff No. | 85332100 |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
