TE Connectivity / P&B

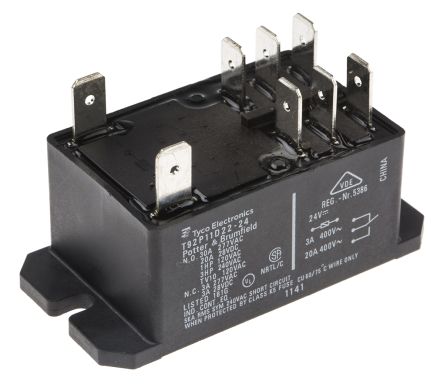

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | General Purpose Relays |
| RoHS | RoHS Compliant By Exemption |
| 触点形式 | 2 Form C (DPDT-BM) |
| 线圈电压 | 24 V |
| 线圈电阻 | 350 Ohms |
| 线圈电流 | 30 A |
| 安装风格 | Panel |
| 触点材料 | Silver Cadmium Oxide |
| 线圈类型 | Monostable |
| 接触端子 | Quick Connect |
| 身高 | 30.7 mm |
| 长度 | 52.3 mm |
| 功耗 | 1.7 W |
| 系列 | T92 |
| 工厂包装数量 | 30 |
| 宽度 | 34.5 mm |
| 零件号别名 | 5-1393211-4 |
| 工业别名 | 5-1393211-4, T92P11D22-24 |
| 子类别 | Electromechanical Relay |
| 封装 | Tray |
| 交货期 | 113 Days |
| 开启电压（最大值） | 18 VDC |
| 产品特点 | Insulation - Class F |
| 关闭电压（最小值） | 2.4 VDC |
| 线圈功率 | 1.7 W |
| 继电器类型 | General Purpose |
| 端接类型 | Quick Connect - 0.250" (6.3mm) |
| 切换电压 | 277VAC, 28VDC - Max |
| 释放时间 | 15ms |
| 工作温度 | -55°C ~ 85°C |
| 操作时间 | 15ms |
| 触点额定值（电流） | 30A |
| 标准包装 | 30 |
| 安装类型 | Chassis Mount |
| RoHS指令 | Lead free / RoHS Compliant |
| 应用 | Power |
| 联系配置 | DPDT |
| 深度 | 34.54mm |
| 最高工作温度 | +85°C |
| 最低工作温度 | -55°C |
| 终端类型 | Screw |
| 触点额定电流 | 30 A |
| 类型 | Power Relay |
| 产品范围 | :TE - T92 Series |
| Contact Current | :40A |
| Contact Voltage VAC | :600V |
| Contact Voltage VDC | :28V |
| Relay Mounting | :Panel |
| Coil Operating Lower Percent Limit | :80% |
| Coil Operating Upper Percent Limit | :110% |
| Coil Voltage VDC Nom | :24V |
| Contact Current AC Max | :30A |
| Contact Current DC Max | :20A |
| Contact Current Max | :40A |
| Contact Voltage AC Max | :240V |
| Contact Voltage AC Nom | :600V |
| Contact Voltage DC Max | :28V |
| Contact Voltage DC Nom | :28V |
| Dielectric Strength VDC | :4000V |
| 外部深度 | :26mm |
| 外部高度 | :69mm |
| External Length / Height | :69mm |
| 外宽 | :34mm |
| 可燃性等级 | :UL94V-0 |
| MSL | :- |
| No. of Poles | :2 |
| Nom Operating Power | :1.7W |
| Operating Temperature Max | :65°C |
| Operating Temperature Min | :-40°C |
| Operating Time | :15ms |
| Weight (kg) | 0.04 |
| Tariff No. | 85364900 |
| Brand/Series | T92Series |
| ContactForm | DPDT |
| CurrentRating | 30A |
| Current,Rating | 30A |
| 功能 | Power |
| MountingType | Panel |
| NumberofPins | 8 |
| RelayType | ElectroMechanical |
| 标准 | UL,CSA,RoHS,VDE |
| 端子 | QuickConnect |
| TycoPartNumber | 5-1393211-4 |
| Voltage,Control | 24VDC |
| Voltage,Rating | 600VAC |
