TE Connectivity

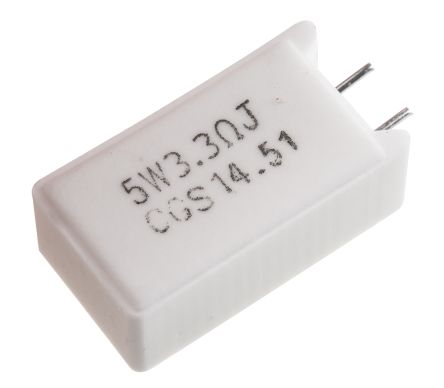

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| メーカ | TE Connectivity |
| RoHS | RoHS 認証 |
| 抵抗 | 3.3 Ohms |
| 公差 | 5 % |
| 電力定格 | 5 W |
| 温度係数 | 300 PPM / C |
| 末端様式 | Radial |
| 動作温度範囲 | - 55 C to + 250 C |
| 寸法 | 13 mm W x 25 mm L x 9 mm H |
| 製品 | Power Resistors Wirewound Inorganic Potting Compound |
| 別の部品番号 | 1-1623788-4 |
| 机箱样式 | Ceramic |
| 深度 | 9mm |
| 外形尺寸 | 13 x 9 x 25mm |
| 身高 | 25mm |
| 引线间距 | 5mm |
| 长度 | 13mm |
| 最高工作温度 | +250°C |
| 最大温度系数 | +300ppm/°C |
| 最低工作温度 | -55°C |
| 最低温度系数 | -300ppm/°C |
| 额定功率 | 5W |
| 电阻 | 3.3Ω |
| 技术 | Wire Wound |
| 温度系数 | ±300ppm/°C |
| 端接类型 | Radial |
| 容差 | ±5% |
| RoHS指令 | Compliant |
| 产品 | Power Resistors Wirewound Inorganic Potting Compound |
| 表壳宽度 | 13 mm |
| 工作温度范围 | - 55 C to + 250 C |
| 表壳长度 | 25 mm |
| 表壳厚度 | 9 mm |
| 零件号别名 | 1-1623788-4 |
| 产品范围 | :TE CONNECTIVITY - SQ Series |
| 电阻公差 | :± 5% |
| Resistor Case Style | :Radial Leaded |
| Resistor Element Material | :Wirewound |
| 额定电压 | :350V |
| 外部深度 | :10mm |
| External Length / Height | :26.5mm |
| 外宽 | :14mm |
| Full Power Rating Temperature | :70°C |
| 引线直径 | :0.8mm |
| 引线长度 | :3.5mm |
| 引线间距 | :5mm |
| Operating Temperature Max | :275°C |
| Operating Temperature Min | :-55°C |
| Resistor Mounting | :Through Hole |
| 系列 | :SQM5 |
| Temperature Coeff. + | :300ppm/°C |
| Temperature Coeff. - | :300ppm/°C |
| Tolerance + | :5% |
| Tolerance - | :5% |
| Voltage Rating V DC | :350V |
| Weight (kg) | 0.006 |
| Tariff No. | 85332100 |
| Brand/Series | SQSeries |
| Material,Element | Wirewound |
| PackageType | CeramicCore |
| Power,Rating | 5W |
| 端子 | Radial |
| TycoPartNumber | 1-1623788-4 |
